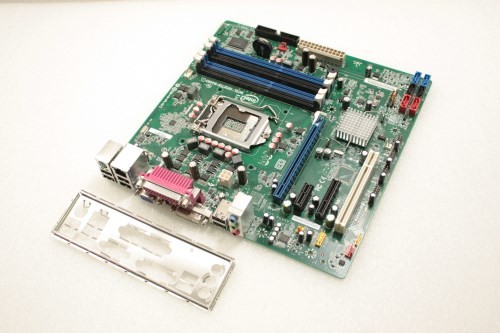

Intel Desktop Board DQ670W, DDR3, Socket 1155 (MTX)

Κωδικός: 36177

Κατασκευαστής/ Συμβατότητα: Intel

Κατηγορία: Μητρικές υπολογιστών

Αυτόματη ειδοποίηση μέσω E-mail όταν το προϊόν γίνει ξανά διαθέσιμο!

Εγγύηση προϊόντος: 3 μήνες

Διαθεσιμότητα: Προσωρινά εξαντλημένο διατίθεται με προπαραγγελία

89.00

υποστηριζει 2ης γενιας intel cpu

BULK συσκευασία με backplate

GENERAL
  • Chipset Type Intel Q67 Express
  • Compatible Processors Core i5, Core i3, Core i7
  • Processor Socket LGA1155 Socket
  • Max Processors Qty 1
  • Manufacturer Intel
EXPANSION / CONNECTIVITY
  • Expansion Slots 1 x CPU
    4 x DIMM 240-pin (1.5 V)
    1 x PCIe 2.0 x16
    1 x PCIe 2.0 x4
    1 x PCIe 2.0 x1
    1 x PCI
  • Storage Interfaces SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
    SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • Internal Interfaces 8 x USB 2.0
  • Power Connectors 4-pin ATX12V connector, 24-pin main power connector
  • RAID Features Intel Rapid Storage Technology
PROCESSOR
  • Max Supported Qty 1
  • Installed Qty 0
INTERFACE PROVIDED
  • Qty 1, 6
  • Type DVI-D, LAN (Gigabit Ethernet), PS/2 keyboard / mouse, USB 2.0, VGA, audio line-in, audio line-out, microphone, parallel
  • Connector Type mini-jack
MISCELLANEOUS
  • Package Type Retail
  • Package Type retail
  • Compatibility Intel vPro
  • Product Type motherboard
  • Included Accessories I/O back plate
AUDIO
  • Audio Codec Realtek ALC888S
  • Compliant Standards High Definition Audio
PROCESSOR / MEMORY / STORAGE
  • Max Supported Qty 1
NETWORKING
  • Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
  • Network Controller Intel 82579LM
  • Network Gigabit Ethernet
RAM
  • Max Supported Size 32 GB
  • Features dual channel memory architecture
VIDEO
  • Video Output graphics adapter (CPU required)
AUDIO OUTPUT
  • Sound Output Mode 7.1 channel surround
  • Compliant Standards High Definition Audio
  • Type sound card
  • Audio Codec Realtek ALC888S
  • Audio High Definition Audio (8-channel)
ENVIRONMENTAL STANDARDS
  • ENERGY STAR Certified Yes
LAN
  • Network Interfaces Gigabit Ethernet
  • Network Controller Intel 82579LM
SUPPORTED RAM
  • Bus Clock 1333 MHz, 1066 MHz
  • Registered or Buffered Unbuffered
  • Features Dual channel memory architecture
  • Speed PC3-10600, PC3-8500
  • Technology DDR3
  • Max Size 32 GB
  • Supported RAM Integrity Check Non-ECC
HEADER
  • Brand Intel
  • Product Line Intel Desktop Board
  • Model DQ67OW
  • Edition Executive Series
  • Packaged Quantity 1
  • Compatibility PC
MAINBOARD
  • Form Factor micro ATX
  • Processor Socket LGA1155 Socket
  • Compatible Processors Core i3, Core i5, Core i7
  • Chipset Type Intel Q67 Express
  • Supported RAM Technology DDR3 SDRAM
  • Supported RAM Speed 1066 MHz, 1333 MHz
  • Supported RAM Standard PC3-10600, PC3-8500
  • Supported RAM Integrity Check non-ECC
  • Supported RAM (Registered or Buffered) unbuffered
  • RAM Slots 4 DIMM slots
  • Power Connectors 24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
  • BIOS Type Intel
  • BIOS Features ACPI 1.0b support, DMI 2.5 support, Hyper-Threading Technology, SMBIOS support, Wfm support
  • Sleep / Wake Up RTC (real-time clock) wake up, suspend to RAM (STR), wake on LAN (WOL), wake on PCI device, wake on USB port
  • Hardware Features Intel Active Management Technology (Intel AMT), Intel Fast Memory Access Technology, Intel Turbo Boost Technology, Trusted Platform Module (TPM) 1.2, chassis intrusion detection
INTERFACES
  • Storage Serial ATA-300 (RAID), Serial ATA-600 (RAID)
  • Storage Ports 2 x SATA-600 (RAID), 4 x SATA-300 (RAID)
  • RAID Features Intel Rapid Storage Technology
  • USB / FireWire Ports Configuration (Active) 6 x USB 2.0
EXPANSION SLOTS
  • Total Qty 1, 4
  • Voltage 1.5 V
  • Type CPU, DIMM 240-pin, PCI, PCIe 2.0 x1, PCIe 2.0 x16, PCIe 2.0 x4
CABLE DETAILS
  • Type DVI-VGA adapter, Serial ATA cable
  • Included Qty 1, 2
SOFTWARE
  • Software Included ESET Smart Security 4 (1 year license), Intel Core Utilities Bundle, Intel Desktop Utilities, Laplink PCmover Professional, Spiceworks IT Desktop, Wave EMBASSY Security Center
DIMENSIONS & WEIGHT
  • Width 9.6 in
  • Depth 9.6 in
STORAGE INTERFACES
  • Interface Serial ATA-300, Serial ATA-600
  • Connector(s) 2 x 7pin Serial ATA, 4 x 7pin Serial ATA
  • Supported Devices Qty 2, 4
  • RAID (Level) RAID 0 / RAID 1 / RAID 10 / RAID 5
SERVICE & SUPPORT
  • Type 3 years warranty
SERVICE & SUPPORT DETAILS
  • Type limited warranty
  • Full Contract Period 3 years
INTERNAL INTERFACES
  • Type USB 2.0
  • Qty 8
FEATURES
  • BIOS Type Intel
  • Hardware Features Chassis intrusion detection, Trusted Platform Module (TPM) 1.2, Intel Active Management Technology (Intel AMT), Intel Fast Memory Access Technology, Intel Turbo Boost Technology
  • BIOS Features ACPI 1.0b support, SMBIOS support, Hyper-Threading Technology, DMI 2.5 support, Wfm support
  • Sleep / Wake Up RTC (real-time clock) wake up, suspend to RAM (STR), wake on LAN (WOL), wake on PCI device, wake on USB port
GENERAL
  • Manufacturer Intel
