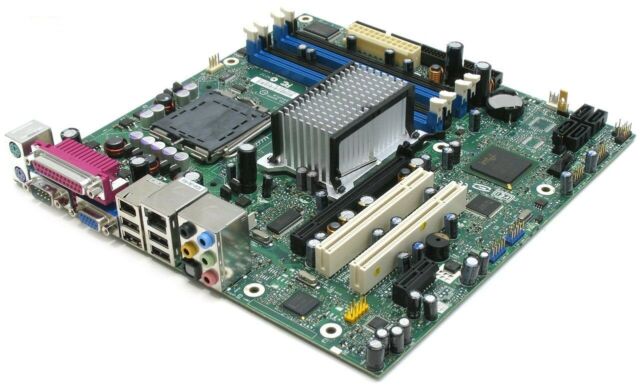

Intel Desktop Board D945PLM DDR 775 (MTX)

Κωδικός: 43867

Κατασκευαστής/ Συμβατότητα: Intel

Κατηγορία: Μητρικές υπολογιστών

Αυτόματη ειδοποίηση μέσω E-mail όταν το προϊόν γίνει ξανά διαθέσιμο!

Εγγύηση προϊόντος: 12 μήνες

Διαθεσιμότητα: Προσωρινά εξαντλημένο διατίθεται με προπαραγγελία

69.00
GENERAL
  • Chipset Type Intel 945P Express / Intel ICH7
  • Compatible Processors Pentium 4, Celeron D, Pentium D
  • Processor Socket LGA775 Socket
  • Max Bus Speed 800 MHz
  • Max Processors Qty 1
  • Manufacturer Intel
EXPANSION / CONNECTIVITY
  • Expansion Slots 1 x CPU
    4 x DIMM 240-pin (1.8 V)
    1 x PCIe x16
    1 x PCIe x1
    2 x PCI
  • Storage Interfaces Intel ICH7: ATA-100 -connectors: 1 x 40pin IDC - 2 devices
    Intel ICH7: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
  • Internal Interfaces 1 x floppy
  • Additional Connectors (Optional) 4 x USB 2.0
  • Power Connectors 4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
  • Max Supported Qty 1
  • Installed Qty 0
MISCELLANEOUS
  • Product Type motherboard
INTERFACE PROVIDED
  • Qty 1, 4
  • Type LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, audio line-in, audio line-out, microphone, parallel, serial
  • Connector Type mini-jack
PROCESSOR / MEMORY / STORAGE
  • Max Supported Qty 1
AUDIO
  • Audio Codec STAC9220
  • Compliant Standards High Definition Audio
NETWORKING
  • Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
  • Network Gigabit Ethernet
VIDEO
  • Video Output none
RAM
  • Max Supported Size 4 GB
  • Features dual channel memory architecture
AUDIO OUTPUT
  • Sound Output Mode 5.1 channel surround
  • Compliant Standards High Definition Audio
  • Type sound card
  • Audio Codec STAC9220
  • Audio High Definition Audio (6-channel)
LAN
  • Network Interfaces Gigabit Ethernet
SUPPORTED RAM
  • Bus Clock 667 MHz, 533 MHz, 400 MHz
  • Features Dual channel memory architecture
  • Registered or Buffered Unbuffered
  • Speed PC2-5300, PC2-4300, PC2-3200
  • Technology DDR2
  • Max Size 4 GB
HEADER
  • Brand Intel
  • Product Line Intel Desktop Board
  • Model D945PLM
  • Packaged Quantity 1
  • Compatibility PC
MAINBOARD
  • Form Factor micro ATX
  • Processor Socket LGA775 Socket
  • Compatible Processors Celeron D, Pentium 4, Pentium D
  • Data Bus Speed 800 MHz
  • Chipset Type Intel 945P Express
  • I/O Controller Intel ICH7
  • Supported RAM Technology DDR2 SDRAM
  • Supported RAM Speed 400 MHz, 533 MHz, 667 MHz
  • Supported RAM Standard PC2-3200, PC2-4300, PC2-5300
  • Supported RAM (Registered or Buffered) unbuffered
  • Power Connectors 24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
  • BIOS Type Intel
  • BIOS Features ACPI support, Hyper-Threading Technology, SMBIOS support
  • Sleep / Wake Up keyboard wake up, mouse wake up, suspend to RAM (STR), wake on USB port
  • Hardware Monitoring CPU core temperature, CPU fan tachometer, chassis fan tachometer, chassis temperature, system voltage
  • Hardware Features Intel Precision Cooling Technology
INTERFACES
  • Storage ATA-100, Serial ATA-300
EXPANSION SLOTS
  • Total Qty 1, 2, 4
  • Voltage 1.8 V
  • Type CPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
DIMENSIONS & WEIGHT
  • Width 9.6 in
  • Depth 9.6 in
SERVICE & SUPPORT
  • Type 3 years warranty
STORAGE INTERFACES
  • Chip Intel ICH7
  • Interface ATA-100, Serial ATA-300
  • Connector(s) 1 x 40pin IDC, 4 x 7pin Serial ATA
  • Supported Devices Qty 2, 4
SERVICE & SUPPORT DETAILS
  • Type limited warranty
  • Full Contract Period 3 years
INTERNAL INTERFACES
  • Type floppy
  • Qty 1
FEATURES
  • BIOS Type Intel
  • Hardware Features Intel Precision Cooling Technology
  • BIOS Features ACPI support, SMBIOS support, Hyper-Threading Technology
  • Sleep / Wake Up Keyboard wake up, suspend to RAM (STR), mouse wake up, wake on USB port
  • Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage
GENERAL
  • Manufacturer Intel
