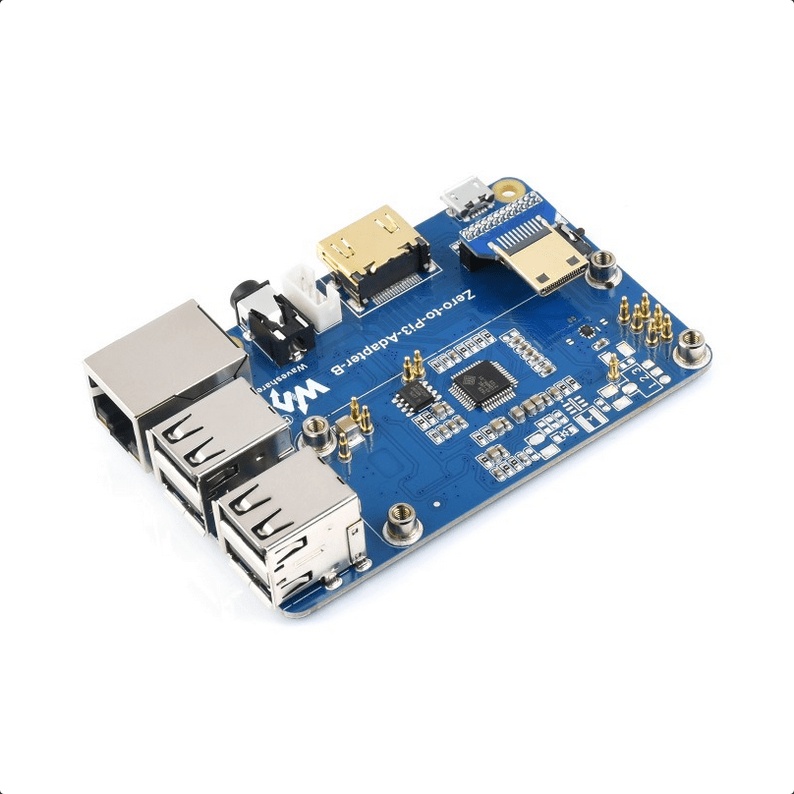

Raspberry Pi Zero 2W To 3B Adapter Alternative Solution for Raspberry Pi 3 Model B/B+ Features at a glance Using pogo pin connection, the Zero 2W can be easily attached Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards Onboard headphone jack(extended from USB) and an additional speaker header Onboard 4-ch USB ports, compatible with USB 2 / 1.1 transmission Onboard RTL8152B Ethernet chip, support 1-ch RJ45 Ethernet port, 10 / 100 M adaptive Not compatible with the first generation Zero Based on Raspberry Pi 2W Use Pi Zero 2W to reproduce the original appearance of the 3B series as much as possible More Cost-effective Choice for reference only, Pi Zero 2W is NOT included Easy to Install Using pogo pin connection, the Zero 2W can be easily attached for reference only, Pi Zero 2W is NOT included Interface Introduction Onboard 4-ch USB Interface, 100M Ethernet Port and HDMI Port Note: The Ethernet port does not support PoE function Compatible with Pi 3B Series HATs Easy access to Pi 3B series HATs or other development projects Note: the height of the GPIO is higher than the Pi 3B / 3B+ for reference only, Pioneer600 and Pi Zero 2W is NOT included. Onboard Audio Interface Support 3.5mm headphone jack and 4PIN speaker header When headphone is plugged in, the speaker will be automatically disabled. for reference only, Pi Zero 2W and speaker is NOT included Outline dimensions
