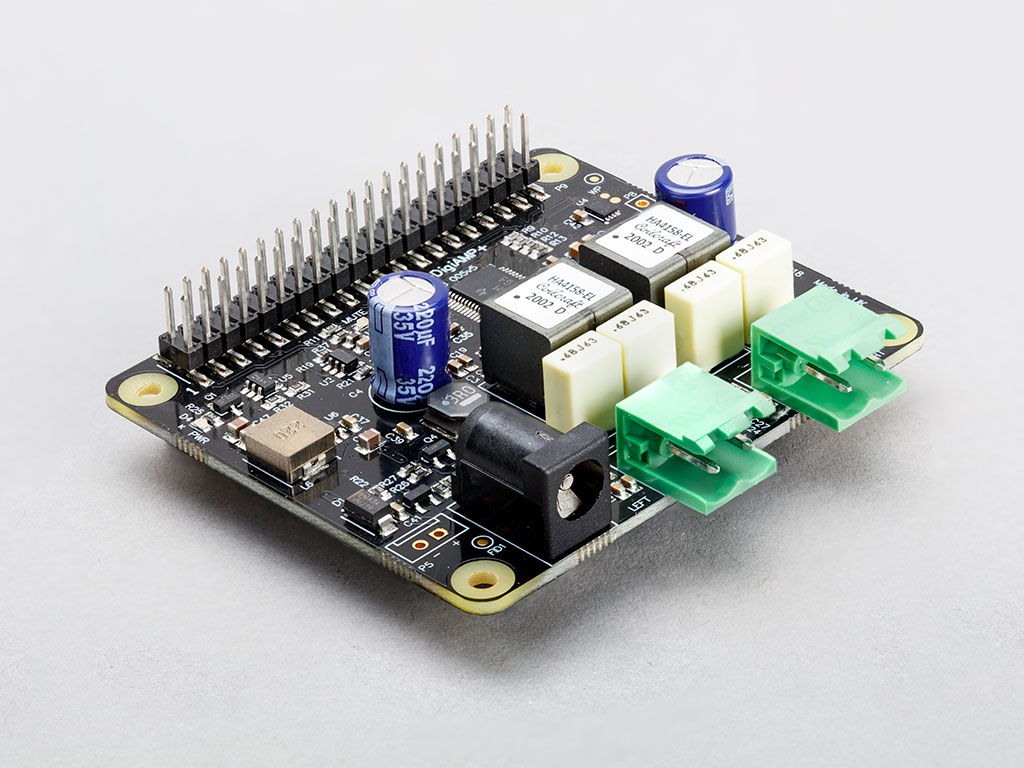

Raspberry Pi IQaudio DigiAMP+ Qaudio DigiAMP+ uses the Texas Instruments TAS5756M PowerDAC to deliver direct connection to PASSIVE stereo speakers at up to 2x35wpc with variable output. Ideal for a Raspberry Pi-based hi-fi system. Συμβατό κουτάκι για το IQaudio DigiAMP+ HighPi Pro Case with Universal Port for Raspberry Pi 4 Getting started IQaudio DigiAMP+ connects to the 40-pin GPIO header of Raspberry Pi 1 Model B+, Raspberry Pi 2, Raspberry Pi 3, or Raspberry Pi 4 with no need for soldering. DigiAMP+ must be powered from an external supply, and requires a 12-24V DC power source to its 5.5 mm x 2.5 mm barrel connector. The XP Power VEC65US19 power supply is recommended for use with DigiAMP+. DigiAMP+ has been designed to provide power to the Raspberry Pi-plus-DigiAMP+ combination in parallel, delivering 5.1V @ 2.5A to your Raspberry Pi. DO NOT APPLY POWER TO RASPBERRY Pi'S OWN POWER INPUT WHEN USING DigiAMP+. The amplifier is by default muted at power on (mute LED lit). The mute state/LED is under software control (Raspberry Pi GPIO22). P5: Alternative power input for hard-wired installations. POLARITY MUST BE OBSERVED! P8: TAS5756m Internal GPIO1/2/3 Documents IQaudio product brief Compliance IQaudio DigiAMP+ has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance. Obsolescence Statement IQaudio DigiAMP+ will remain in production until at least January 2026
