TECHLY IDATA HDMI2-4K3160B HDMI 2.0b Switch 3 in 1out 4K HDR HDCP2.2 with remote control
Code: 59936
Manufactured by/Compatible with: TECHLY
Category: Vision - Sound
Product warranty: 12 months
Availability: Limited stock
Datasheet
Drivers and manuals
Contact us

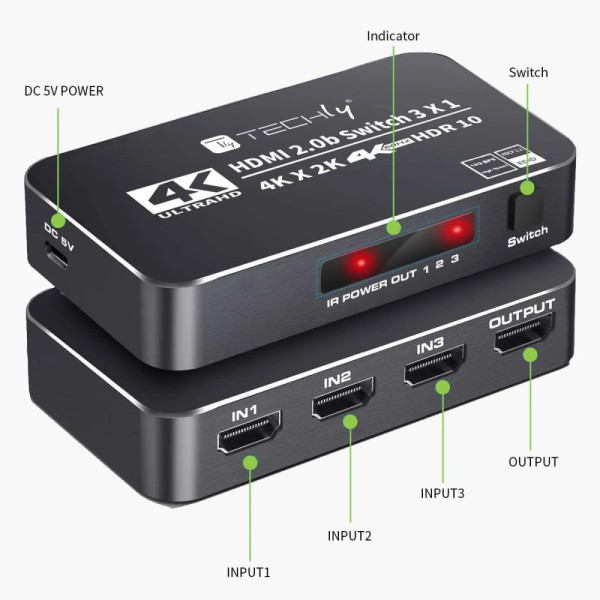

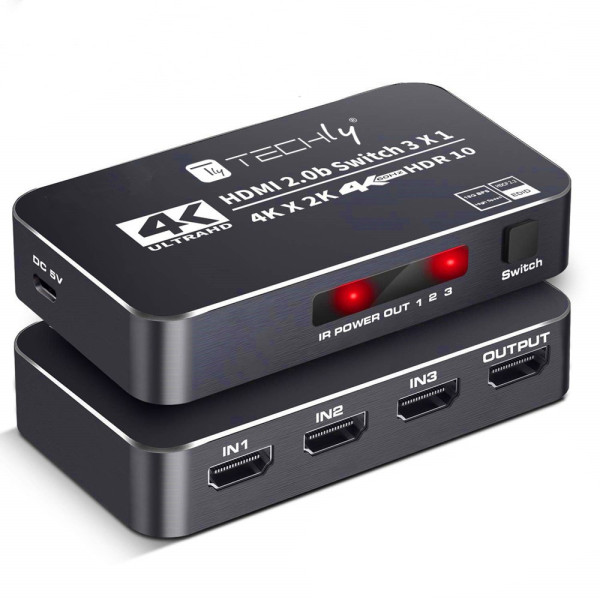

IDATA HDMI2-4K3160B switch can support 3 HDMI ports to switch to a display terminal with remote control or manual button.

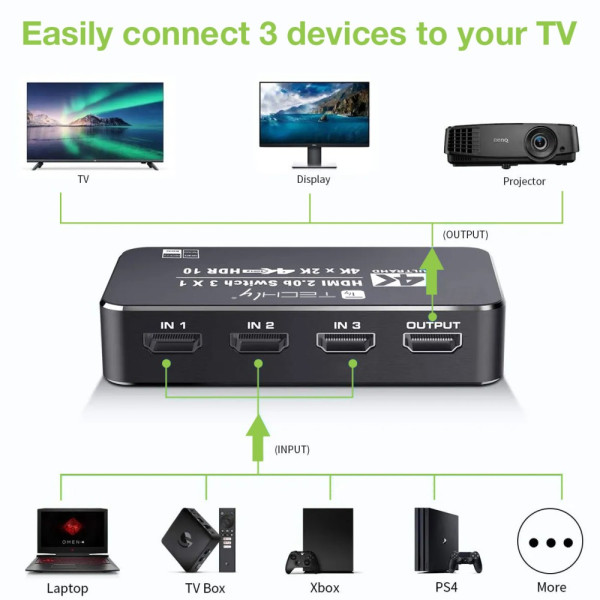

It supports LED display operation and is suitable for computers, laptops, HD-DVD, SKY-STB, PS3, Xbox360 and other devices.
Product Specifications
Easily switch between three HDMI sources
Support HDMI 2.0b version 4Kx2K HDR version
Incoming video signal: 0.5-1.0VOLTSP.P
Single input video signal: 4Kx2K @ 60Hz
Video bandwidth: 18.5 Gbps/600 MHz
Supported resolutions: 480i, 480p, 576i, 576p, 720p, 1080p, 4Kx2K@60Hz
Features
Multiple HD input sources such as DVD, player, A/V receiver, set-top box
Supports video resolution up to 4Kx2K at 60Hz
Easy installation, high-performance conversion chip, no splash screen, no flicker, no signal loss
Supports 3D video format
Supports HDMI 600MHz bandwidth, 18.5Gbps data bandwidth per channel (18.5Gbps data bandwidth for all channels)
Supports uncompressed audio such as PCM
Supports compressed digital audio such as DTS Digital, Dolby Digital
Supports HDCP 2.2
Support manual and smart dual-switching selection
Status indicator, understand the progress of each port in real time
HDMI 2.0 cable required for 4K display
PLUGGAGE AND PLAY
Power specifications
ID Interface DC 5V
Power Requirements: 5V/1A
Certifications
CE
FCC
RoHS
Box contents
HDMI2.0 Switch 3in1out 4K@60Hz

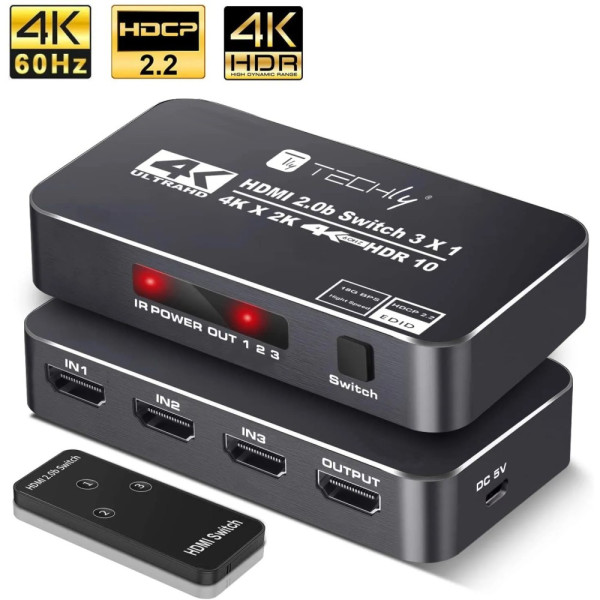

Remote control
USB cable
User manual
