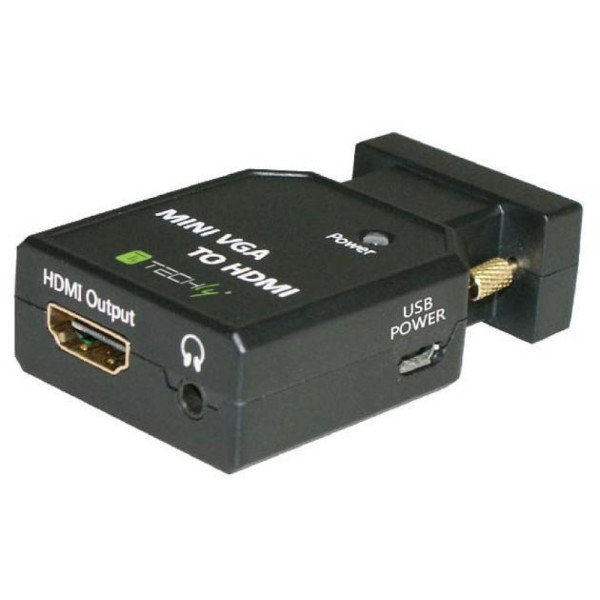

Techly VGA-HDMINI Mini VGA and audio to HDMI converter
Code: 59959
Manufactured by/Compatible with: TECHLY
Category: Vision - Sound
Product warranty: 12 months
Availability: Limited stock

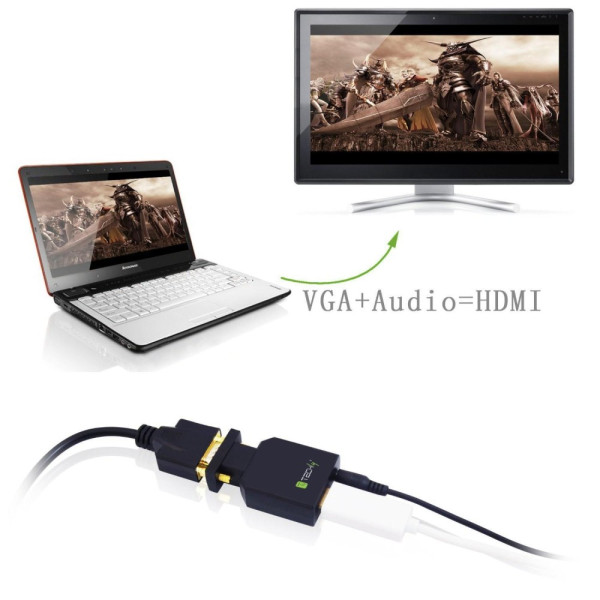

IDATA VGA-HDMINI allows you to connect a laptop / computer with VGA output directly to an HD TV, LCD monitor or projector with HDMI digital input.
Simply insert the adapter into the VGA port of your computer and connect an HDMI cable to the output, connecting the other end to the TV. It supports and converts the audio signal via the 3.5 mm audio input jack, which allows you to connect headphones, speakers or a HiFi system.
It is powered by VGA input and therefore does not require any power supply / external transformer. However, the package includes a Micro USB charging cable through which the converter can also be powered from the computer network.
Features

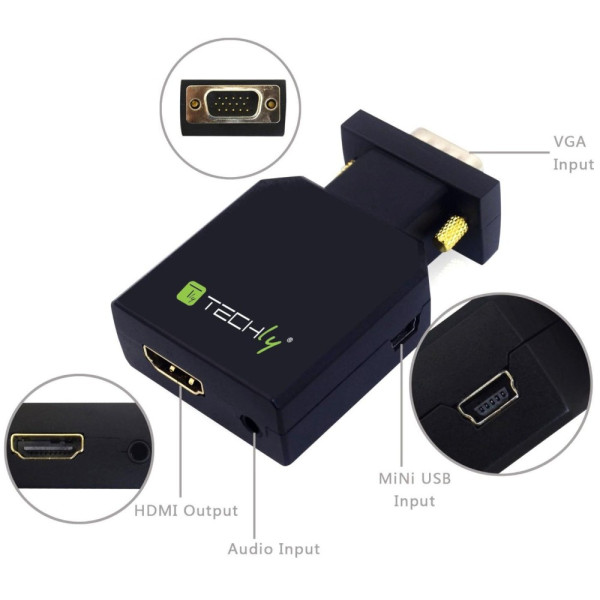

• VGA and audio to HDMI converter
• Input: 1x VGA female. 1x 3.5" female audio
• Output: 1x HDMI port
• Features Micro USB port charging
• Gold-plated connectors
• Quick and easy plug and play installation
• Detects and adjusts the required resolution
• HDMI output: HDMI 1.3
• Input signal: RGB: 0.7 Vp-p 75 ohms
• Power consumption: 0.5W maximum
• With power indicator LED
Supported resolutions
640 × 480 @ 60/72/75/85Hz, 720x400 @ 70Hz,
800 × 600 @ 60/72/75/85Hz, 1024x768 @ 60/70/75/85Hz,
1152 × 864 @ 75Hz 1280x720 @ 60Hz,
1280x768 @ 60/75 / 85Hz, 1280x800 @ 60/75 / 85Hz,
1280x960 @ 60Hz, 1280x1024 @ 60 / 75Hz,
1360 × 768 @ 60Hz, 1400x1050 @ 60Hz,
1440x900 @ 60Hz, 1600x1200 @ 60Hz,
1680x1050 @ 60Hz, 1920x1080 @ 60Hz,
1920 × 1200_RB @ 60Hz, 1920x1200 @ 60Hz
Environmental specifications
• Operating temperature: 0-70 ° C
• Operating humidity: 10% - 85% RH (non-condensing)
• Storage temperature: -10 - 80°C
• Storage Humidity: 5% - 90% RH (non-condensing)
Dimensions
• Length: 72 mm
• Width: 41 mm
• Height: 18 mm
Certifications
• EC
• FCC
Package Contents
• 1x VGA + Audio to HDMI Converter
• 1x Micro USB Cable
• 1x VGA Cable
• 1x Audio Cable
• 1x User Manual
Simply insert the adapter into the VGA port of your computer and connect an HDMI cable to the output, connecting the other end to the TV. It supports and converts the audio signal via the 3.5 mm audio input jack, which allows you to connect headphones, speakers or a HiFi system.
It is powered by VGA input and therefore does not require any power supply / external transformer. However, the package includes a Micro USB charging cable through which the converter can also be powered from the computer network.
Features
• VGA and audio to HDMI converter
• Input: 1x VGA female. 1x 3.5" female audio
• Output: 1x HDMI port
• Features Micro USB port charging
• Gold-plated connectors
• Quick and easy plug and play installation
• Detects and adjusts the required resolution
• HDMI output: HDMI 1.3
• Input signal: RGB: 0.7 Vp-p 75 ohms
• Power consumption: 0.5W maximum
• With power indicator LED
Supported resolutions
640 × 480 @ 60/72/75/85Hz, 720x400 @ 70Hz,
800 × 600 @ 60/72/75/85Hz, 1024x768 @ 60/70/75/85Hz,
1152 × 864 @ 75Hz 1280x720 @ 60Hz,
1280x768 @ 60/75 / 85Hz, 1280x800 @ 60/75 / 85Hz,
1280x960 @ 60Hz, 1280x1024 @ 60 / 75Hz,
1360 × 768 @ 60Hz, 1400x1050 @ 60Hz,
1440x900 @ 60Hz, 1600x1200 @ 60Hz,
1680x1050 @ 60Hz, 1920x1080 @ 60Hz,
1920 × 1200_RB @ 60Hz, 1920x1200 @ 60Hz
Environmental specifications
• Operating temperature: 0-70 ° C
• Operating humidity: 10% - 85% RH (non-condensing)
• Storage temperature: -10 - 80°C
• Storage Humidity: 5% - 90% RH (non-condensing)
Dimensions
• Length: 72 mm
• Width: 41 mm
• Height: 18 mm
Certifications
• EC
• FCC
Package Contents
• 1x VGA + Audio to HDMI Converter
• 1x Micro USB Cable
• 1x VGA Cable
• 1x Audio Cable
• 1x User Manual
