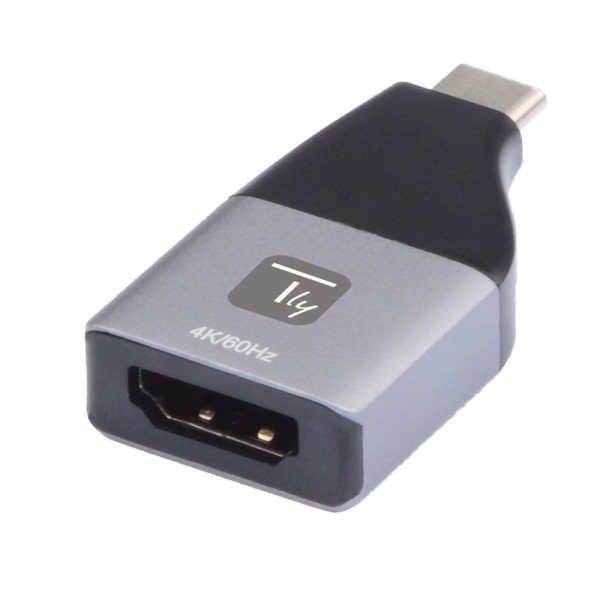

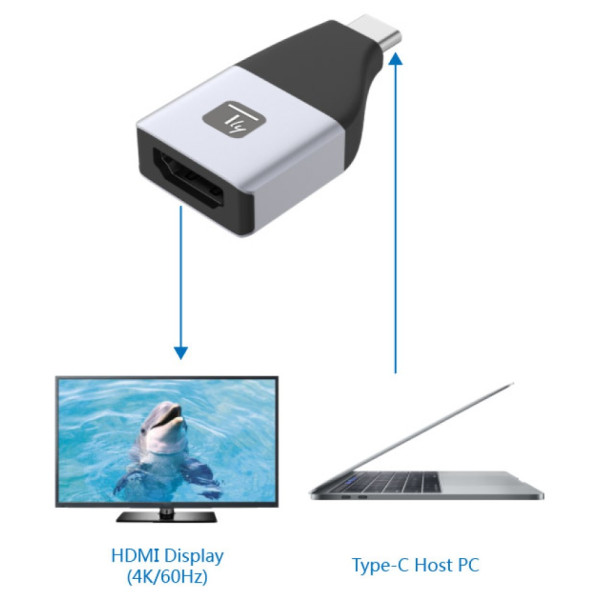

The IADAP USBC-HDMIHDR adapter is a USB-C™ to HDMI adapter with HDR, which allows you to transmit signals from your host computer to an HDMI display. This adapter allows HDMI video output with a maximum of 4k/60Hz. It can work with all USB-C™ and Thunderbolt™ 3 hosts that support DP Alt mode. When working with a Thunderbolt™ 3 host, this product transmits a DP signal.


Features

- Input connector: USB-C™ male

- USB-C™ supports DP1.2 Alt mode

- Output connector: 1: HDMI

- Supports HDMI max 4K/60Hz, 4:4:4, 8bit with 18Gbps bandwidth

- Supports 6/8/10/12 bit color depth output

- Supports RGB4:4:4:4/YCbCr4:4:4:4/YCbCr4:2:2 output pixel format

- Supports HDCP 2.2&HDCP1.4

- Supports HDR


Technical specifications

- Input connector: USB-C™ male

- Output connector: HDMI female

- Resolution: up to 3840x2160@60Hz

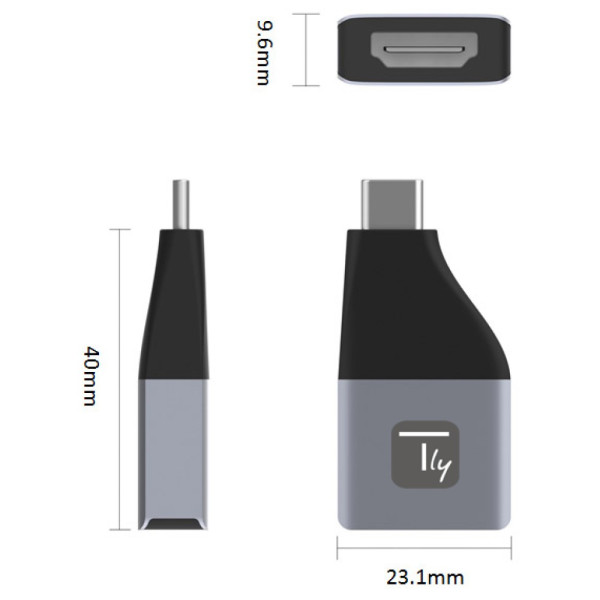

- Dimensions: 40 x 23.1 x 9.6 mm

- Operating temperature: 0°C ~ 45°C

- Operating humidity: 10% ~ 90% RH (non-condensing)

- Storage temperature: -10°C ~ 70°C

- Storage humidity: 5% ~ 90% RH (non-condensing)

- Power source: Power source: Power source: Power source: Power source: Power source: Power source: Power source: Power supply: Bus power

- Certifications: FCC, CE


Package contents

- USB-C™ to HDMI adapter
