The IDATA EX-HL81TY represents the reliable solution for extending an HDMI signal over long distances, ensuring clarity and stability for both video and audio quality, with full support for full hd video signal and PCM audio, while optimizing costs thanks to the use of a common copper network cable.

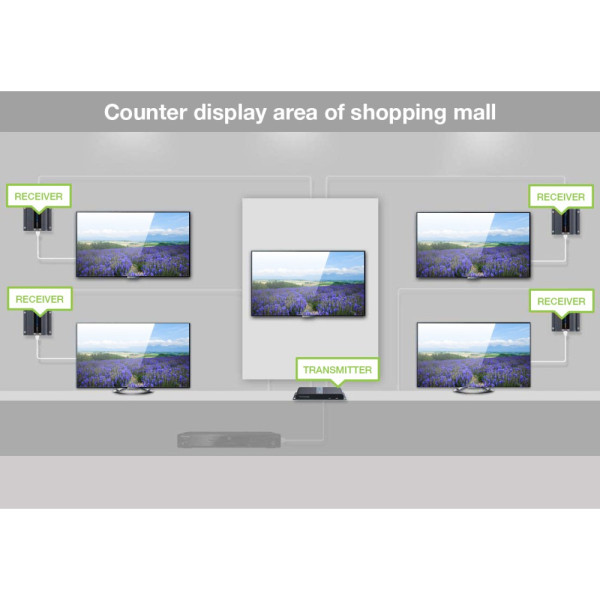

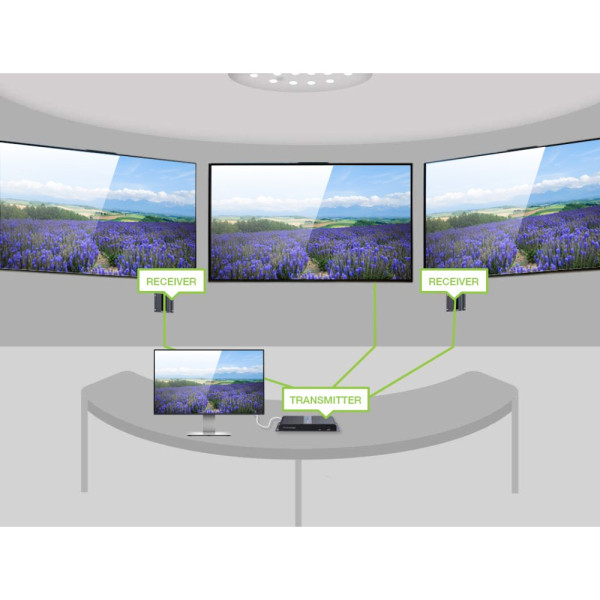

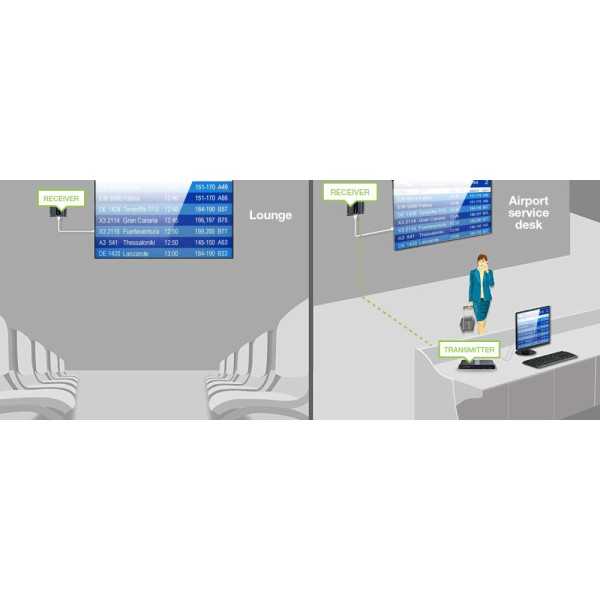

It finds application in various contexts: education, school, health or business. Suitable for digital advertising, DVR video surveillance systems, conference rooms, exhibition halls or trade fairs and many more.
IDATA EX-HL81TY can connect HDMI output devices such as computers, DVRs, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables.
The existing remote control can also be used to control devices from long distances.
It is equipped with an EDID switch for optimal resolution settings
The receivers are powered in "POE" directly from the base via network cables, saving the installation of additional power supplies in the remote controls.

Features

Distributes the audio/video signal from an HDMI source to 8 HDMI displays simultaneously using a Cat.6 or higher network cable
Allows you to connect HDMI output devices such as computers, DVRs, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables.
Supports HDMI Loop-out: Equipped with an HDMI output port on the transmitter to connect an additional display for local viewing
Extends the HDMI audio/video signal up to 40 meters
Supports 1080p @ 60Hz resolution
Supports IR pass back for remote control of devices
With EDID switch for better compatibility and adjustment between connected devices
Equipped with a "length" button on the receiver to manage different transmission lengths in the best way
Supports PoE function, the receiver is powered by a network cable and does not need to be connected to a power supply
PLUGGABLE AND PLAY

Technical specifications

HDMI Input: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 0Hz /
HDMI Output: 480p @ 60Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080p @ 50/60Hz
Supported Video Color Format: 24bit/Deep Color. 30bit/Deep Color; 36 bit
Supported audio format: PCM
Housing: aluminum
Supported HDCP version: HDCP1.2
Input cable length: ≤5m (normal HDMI 1.3 AWG26 cable)
Output cable length: ≤5m (normal HDMI 1.3 AWG26 cable)
Transmission distance: Cat6 up to 40m

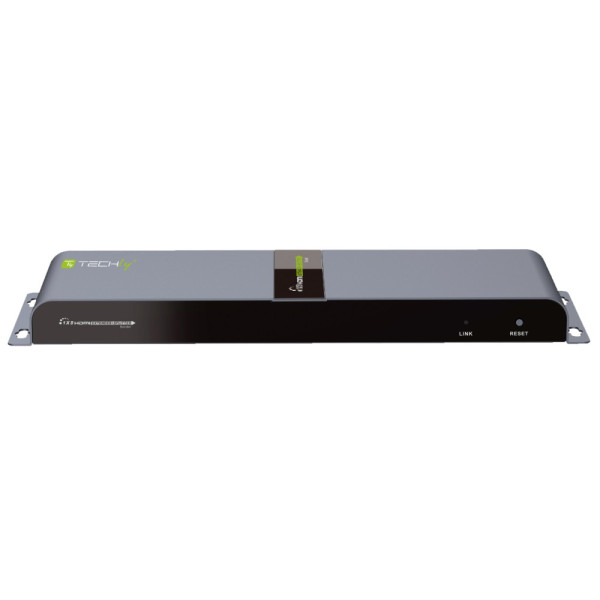

Reset button on the transmitter base
"Length" button on the receiver for length adjustment
Led: "Link" on the transmitter and receiver base

Electricity supply

Power supply: power supply / POE
Included power supply: DC 12V 3A
Power consumption: < 15W
Optional power supply for receivers: 5V 1A

Environmental

Operating temperature: 0 ~ 60 ° C
Storage temperature: -20 - 70 ° C
Storage humidity (non-condensing): 0.95%

Dimensions

TX: 27.6 * 9.6 * 2.3 cm
RX: 7.10 * 6.6 * 2.3 cm

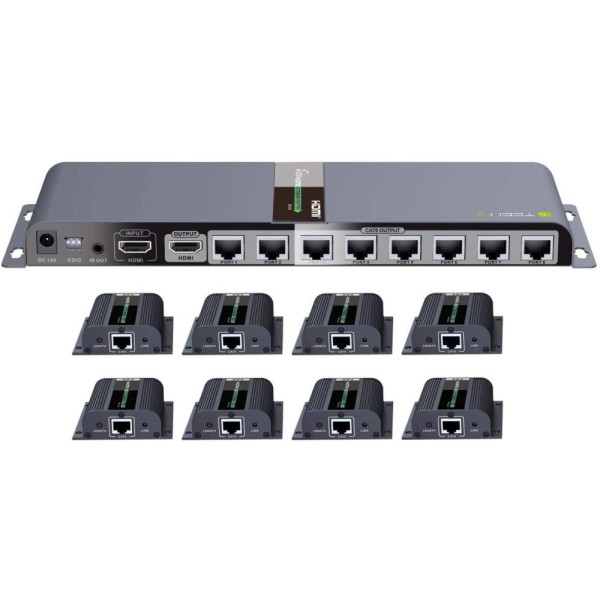

Package contents

1x Transmitter Extension
1x IR blaster cable
8x Receivers
8x ir receiver cables
1x 12V 3A DC Power Supply
1x Installation Guide
