TECHLY IDATA EX-HL41TYP 4-way 4K HDMI splitter with network cable extension up to 70 meters
Code: 59912
Manufactured by/Compatible with: TECHLY
Category: Vision - Sound
Product warranty: 12 months
Availability: Limited stock
The IDATA EX-HL41TYP represents the reliable solution for extending an HDMI signal over long distances, ensuring clarity and stability for both video and audio quality, with full support for Full HD video and PCM audio signals, while optimizing costs thanks to the use of a common copper network cable.
It finds application in various contexts: education, school, healthcare or corporate. Suitable for digital advertising, DVR video surveillance systems, conference rooms, trade show booths or trade fairs and more.
IDATA EX-HL41TYP can connect devices with HDMI output, such as computers, DVRs, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables.
Features

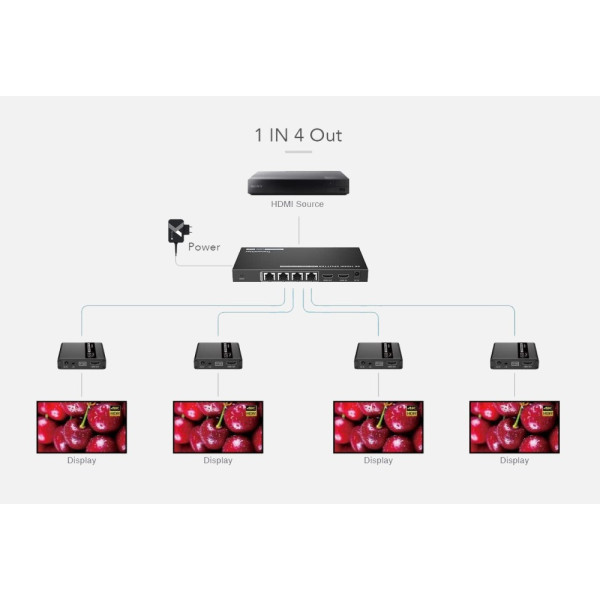

Connect four HDMI displays to one HDMI signal source via CAT6/6a/7 cable

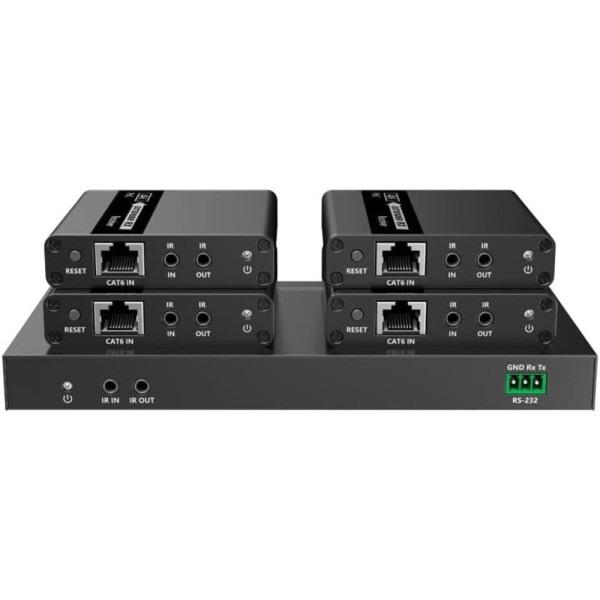

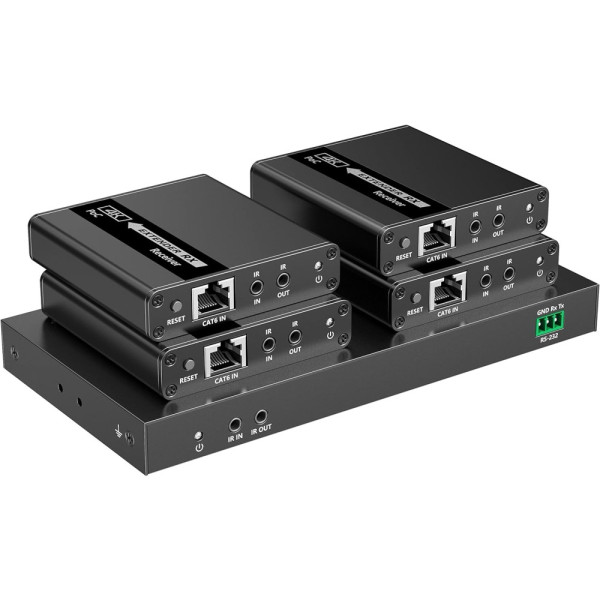

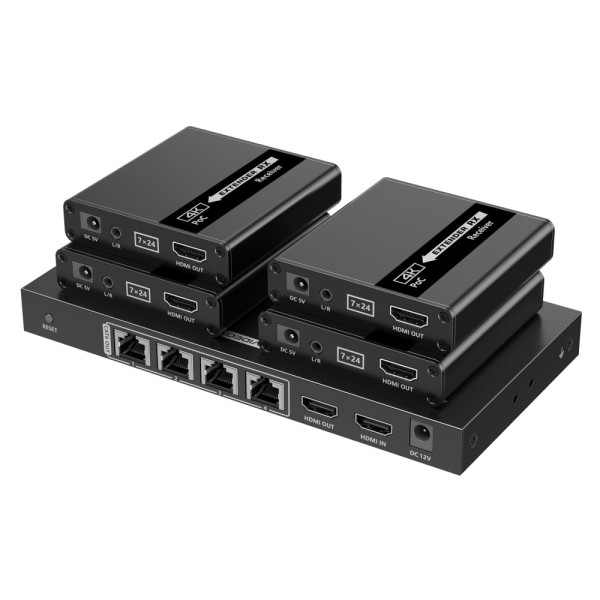

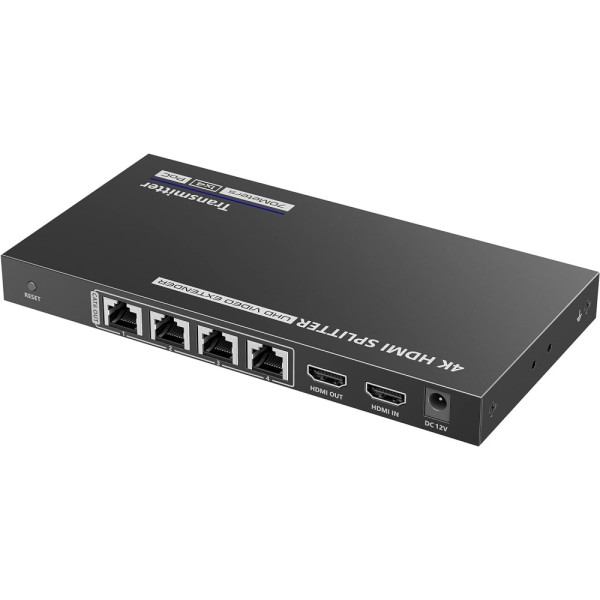

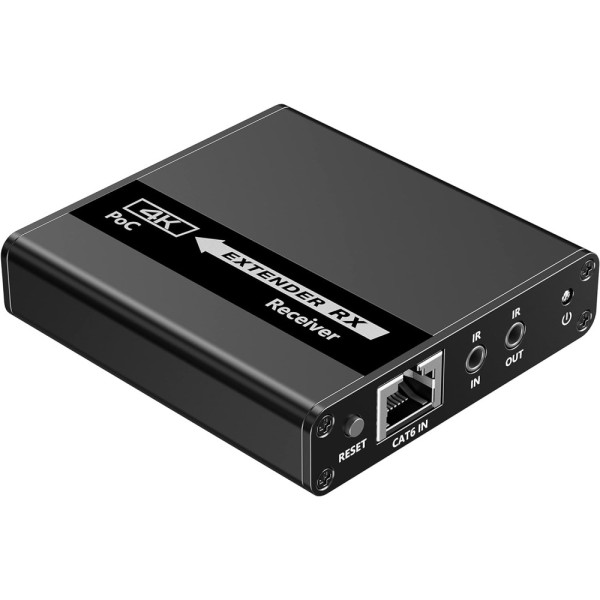

The extender consists of a local transmitter unit with HDMI output and four receivers connected to the transmitter via CAT6/6a/7 cable
The Splitter + Extender allows you to connect up to four HDMI displays at a distance of 70 meters and supports UHD 4K@30 Hz display
Cables with copper conductor min. recommended. AWG 23
Technical specifications
Supports HDMI 1.4
Supports HDCP 1.4
Supported resolutions: 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@45,50, 480i, 480i, 480 x 70, 480, 480i @ 60Hz @ 60Hz @ 60 Hz @50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@ 24 /25/30/50/60Hz, 4K@24/25/30Hz
Formats Audio: PCM, LPCM, DTS-HD, DTS-Audio
Supported transmission distance with Cat.6/6A/7 cable: 1080p@60Hz < 70 meters; 4K@30Hz < 40 meters
Bidirectional infrared return (20-60 khz)
Power supply: TX DC12V/2A - RX DC5V/1A
Consumption: TX < 10W; RX < 2.5W
Material: metal
Black color
Protections
Electric discharge
Lightning
Surge
Environmental characteristics
Operating temperature: -20 / 60 °C
Storage temperature: -30 / 70 °C
Humidity: 0-90% (non-condensing)
Dimensions
TX: 191.5 x 96.5 x 19.0 mm; 435 g
RX: 75.0 x 80.0 x 18.0 mm; 160 g x4
Package contents
1x Transmitter
4x Receiver
1x DC12V/2A Power
Supply 4x Extension Cable for IR Receiver
1x IR Blaster Extension Cable
1x RS-232 Terminal Block
2x Mounting Bracket
8x Screw
1x User Manual
