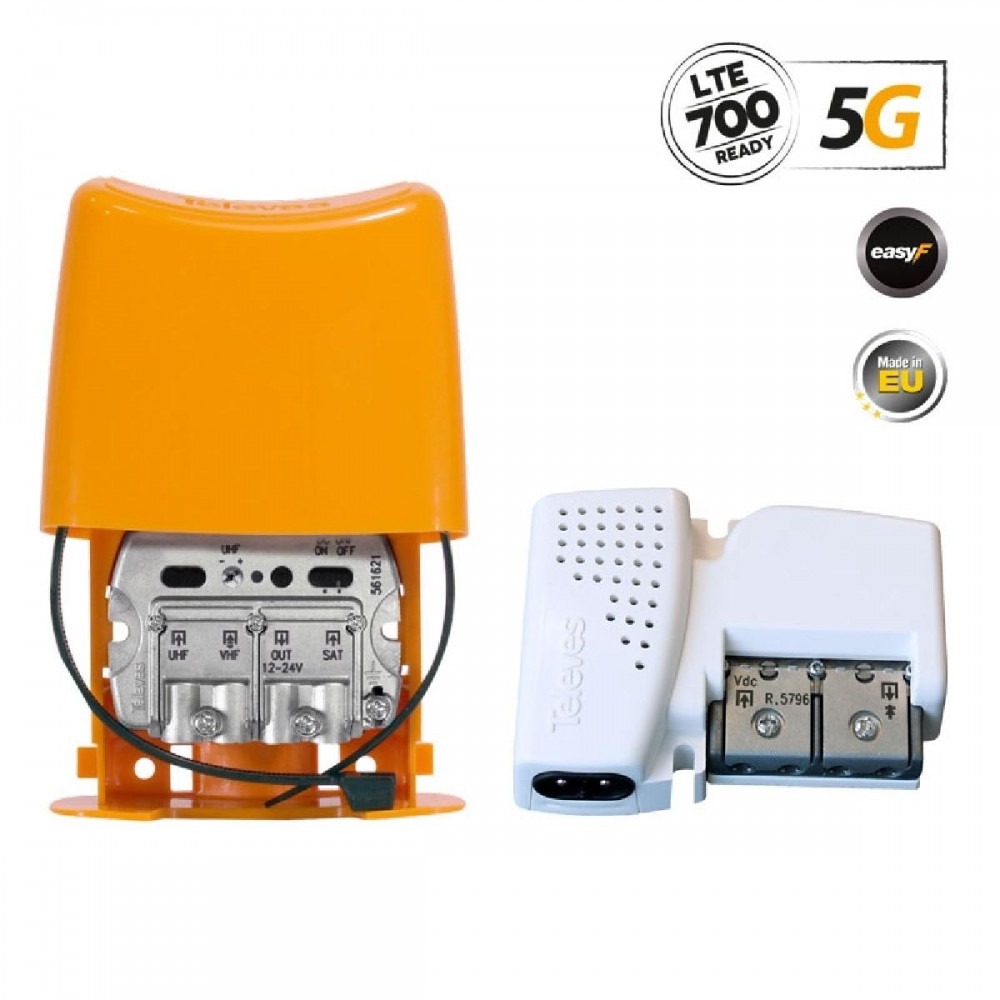

TELEVES SET 438620 NanoKom Kit: 5G LTE WEB AMPLIFIER + PSU 12V UHF/VHF/SAT. WEB AMPLIFIER UHF (channels 21...48), VHF/FM and integrated satellite signal combiner. It has 5G frequency cut-off and with a system of continuous automatic adjustment to the output level setting set by the technician, in a SET together with POWER SUPPLY 5796 IF-MIX, a high-performance switched-mode output, with a particularly good-looking and small construction. It is made of Zamak alloy for electromagnetic protection and weather resistance, while it is contained in a polycarbonate box. It has an Easy-F connection, offering the advantages of the F plug and caliper, without the need for a connection plug. Specifications: WEB AMPLIFIER 5G UHF (channels 21...48), VHF/FM and integrated satellite signal combiner. - Inputs: UHF (MHZ 470...694), VHF/FM (MHZ 47...254), SATmix, with cutoff of 5G frequencies from UHF channel 49 and above - Improved performance between UHF channels 21... 48 (MHz 470...694) - It has a built-in 5G interference cut-off function - With a DC pass-through switch to the antenna (selectable ON/OFF for Televes TForce BOSS antennas, active dipoles, etc.) - Amplification db: UHF 24, VHF -1.5, SAT -2.5. Automatic gain adjustment (AGC) 0...20 db - Noise figure level (NF). Noise: UHF 3db - Output dbmn: 104. With a system of continuous automatic adjustment to the output level setting and the possibility of manual adjustment 0...9 db. - Coaxial power supply from a suitable power supply: 12...24v - Consumption: 50 mA POWER SUPPLY 5796 SAT-MIX, with 1 output. - Operating frequency range: MHz 5...2500 - Transmission losses db: < 1.5, maximum 2.2 - Output power supply V 12.5 (+-1) - Power supply 196-264 V 50/60 Hz - Maximum output current: mA 220 - Minimum output current: mA 30 - Max. temp. operation: 45 C - Degree of protection IP 20 - Consumption: 150 mA
