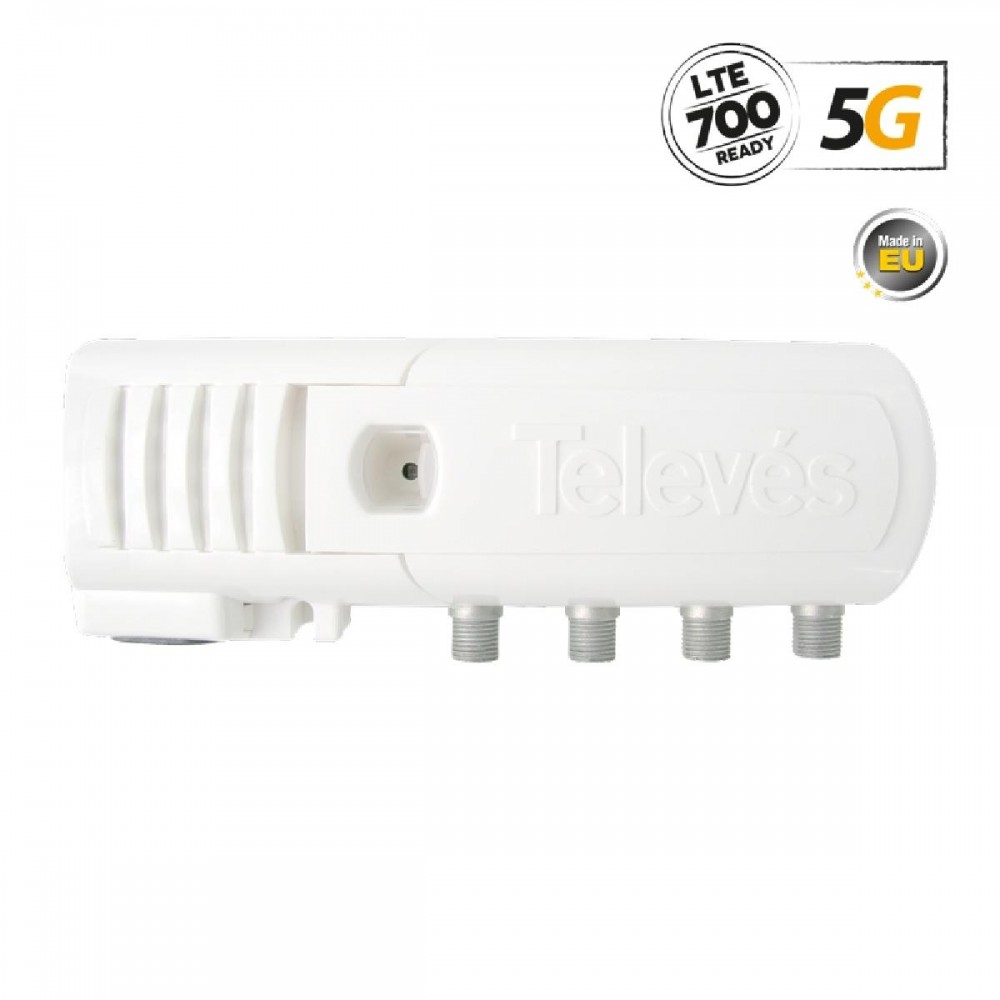

The Televes 552220, is an apartment television signal line amplifier, with 3 outputs and automatic cut-off of 5G / LTE interference. It has 2+1 outputs (2 main and 1 for a local TV) and provides high performance, with a particularly elegant and compact construction. It has manual adjustment of the output signal amplification and F-type connection plugs, while it has very low power consumption thanks to its integrated switched-mode power supply. It is designed for installation on a horizontal or vertical surface and is available in a blister pack. Technical characteristics: - Signal input: one (1), type F - Signal outputs: Three (3). 2 main and 1 for a local TV. Type F - Operating frequency range: MHz 47 ... 694 - Output gain: 2 main outputs: 20 db + 1 TV output: 12 db - Attenuation (adjustment): 0 ... 15 db - Noise: 6 db - DIN45004B output : dbμV 110 - Power supply: 193-253 V / 50-60 Hz - Temp. operation: - 5 ... +45 C - Degree of protection IP 20 - Consumption: 2.3W / 23 mA - Dimensions: 146 x 53 x 35 mm
