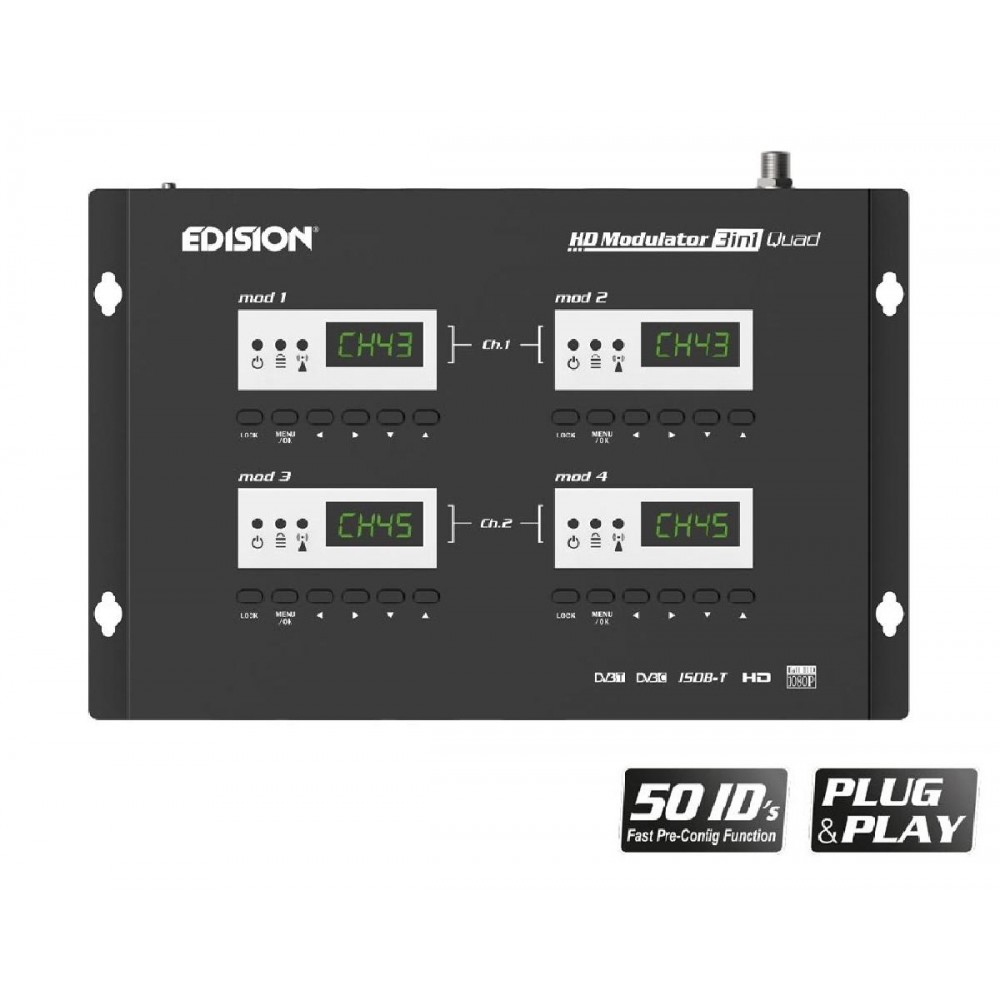

Digital 4-channel HDMI modulator 3in1 EDISION, with 2 output channels of terrestrial digital DVB-T/ISDB-T or cable DVB-C, VHF/UHF MPEG4 signal, in one RF output. It has ready-made and very easy settings for every type of installation. From every 1 to 4 devices with HDMI output (satellite & terrestrial digital TV signal receivers, cameras, DVD, DVR, Digital Signage and any other HDMI signal output source-device) produces on the 2 outputs of the MPEG4 TERRESTRIAL DIGITAL signal DVB-T/ ISDB-T or CABLE DVB-C signal up to FULL HIGH DEFINITION 1080p, with output option in VHF or UHF band. It provides excellent signal quality from its 2 outputs, combined with reliable operation and stable performance, in any installation arrangement. It has 4 x USB ports for CONFIG DATA operation of each of its four units. FAST PRE-CONFIG FUNCTION, provides 50 READY SELECTED IDs, for very easy programming. The setting of the 4 IDs of each 4-channel unit is done per channel in each of the 4 Display/Mod separately and the setting of the 2 output channels from Modulator Display 1 & 3. Technical Characteristics: - Digital 4-channel HDMI modulator in DVB-T, DVB-C or ISDB-T MPEG4 - Signal INPUT: 4 x HDMI v1.4a - Signal OUTPUT: 2 x Terrestrial digital DVB-T, ISDB-T or Cable DVB-C MPEG4 - FULL HIGH DEFINITION video signal resolution up to 1080p@30FPS - Aspect ratio: 16:9 wide screen, 4:3 letter box, 4:3 pan scan - DVB-C Frequency Range: 47-862 MHz - DVB-T Frequency Range: VHF (CH.5-12) & UHF ( CH.21-69) - ISDB-T Frequency Range: VHF (CH.7-13) & UHF (CH.14-69) - RF Output Signal Level: Factory 90 dbμV, selectable to increase to +6dbμV or decrease to - 14dbµV - MER: >35dB at maximum output level - Symbol Rate: 6MHZ: Up to 2x8000 MBPS, 7MHZ: Up to 2x9000 MBPS, 8MHZ: Up to 2x10000 MBPS - Bandwidth: 6MHZ, 7MHZ, 8MHZ - Image Coding: MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 that ASP@L5 , MPEG4 AVC HP @level4.1, [email protected] - Audio Coding: MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH) - CPU Processor: 4 x 200MHz 32Bits RISC - Memory 4 x DDRII 16bit 512Mbits (Built-in) & NOR Flash 32Mbit - USB type: 4 x USB 2 HOST, Fat32 support - FAST PRE-CONFIG function / 50 ready and selectable IDs - Backup Config DATA function, export to USB, easy upload to Modulator - Software upgrade via USB - Ports - Connectors: 4x HDMI IN , RF OUT, 4x USB, SERVICE PORT, DC 12V, GROUND - Four (4) x 4-digit LED display - Four (4) x 6-display keys Package Contents: - HDMI Modulator 3in1 QUAD - Power supply 12V/4.5A universal EU/UK - Fixing screws - User manual EN/DE/GR/ES/IT/FR General : - Power supply: 100 - 240 AC 50/60Hz - Input current: DC 12V 4.5A - Power consumption: 20W maximum - Operating ambient temperature: 0°C ... +50°C - Storage ambient temperature: -20 °C ... +70°C - Ambient Humidity: 10% ... 85% RH, non-condensing - Dimensions: 255x195x40 mm - Weight: 1.64 kg - Color: black
