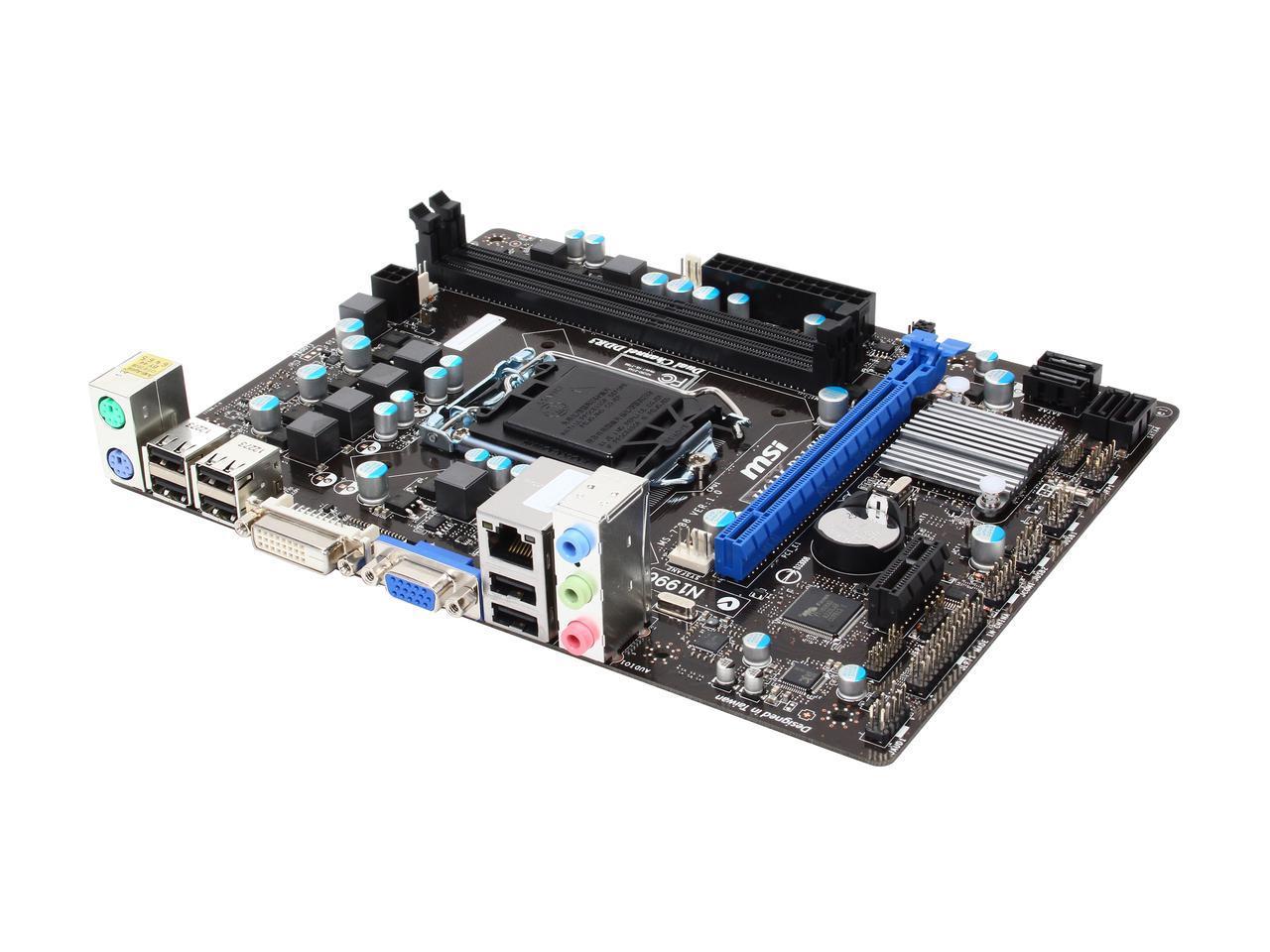

used support 3 gen intel cpu Model Brand MSI Model H61M-P31/W8 Supported CPU CPU Socket Type LGA 1155 CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1155) Chipsets Chipset Intel H61 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Memory Number of Memory Slots 2×240pin Memory Standard DDR3 1066/1333 Maximum Memory Supported 16GB Channel Supported Dual Channel Expansion Slots PCI Express 3 x16 1 x PCI Express 3 x16 PCI Express x1 1 x PCI Express x1 Storage Devices SATA 3Gb/s 4 x SATA 3Gb/s Onboard Audio Audio Chipset Realtek ALC887 Audio Channels 8 Channels Onboard LAN LAN Chipset Realtek 8111E Max LAN Speed 10/100/1000Mbps Rear Panel Ports PS/2 2 Video Ports D-Sub + DVI USB 1.1/2 6 x USB 2 Audio Ports 3 Ports Internal I/O Connectors Onboard USB 4 x USB 2 Other Connectors ATX 24-Pin power connector 4-pin ATX 12V power connector CPU x 1 / System x 2 FAN connectors Front panel audio connector Front panel connector 1 x chasis intrusion connector 1 x Clear CMOS jumper 1 x Serial port connector 1 x Parallel port connector Physical Spec Form Factor Micro ATX Dimensions (W x L) 8.9" x 6.81" Power Pin 24 Pin Features Features OC Genie II: Auto OC to boost performance in 1 sec ClickBIOS Concept: Easy-to-use UEFI BIOS interface Support VGA & DVI-D output IGP Supports DirectX 11, Shader Model 5, OCL 1.1 and OpenGL 3.1 *The DirectX 11 effect is only supported with the 3rd Gen Intel processors for LGA 1155 socket
