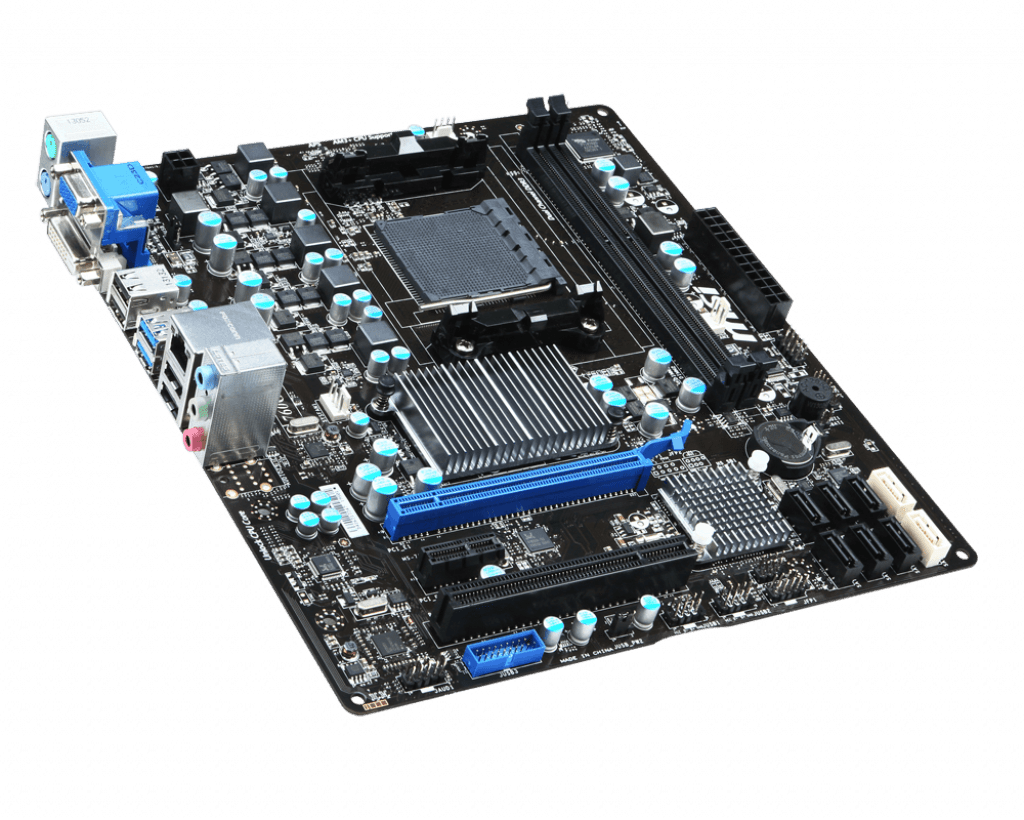

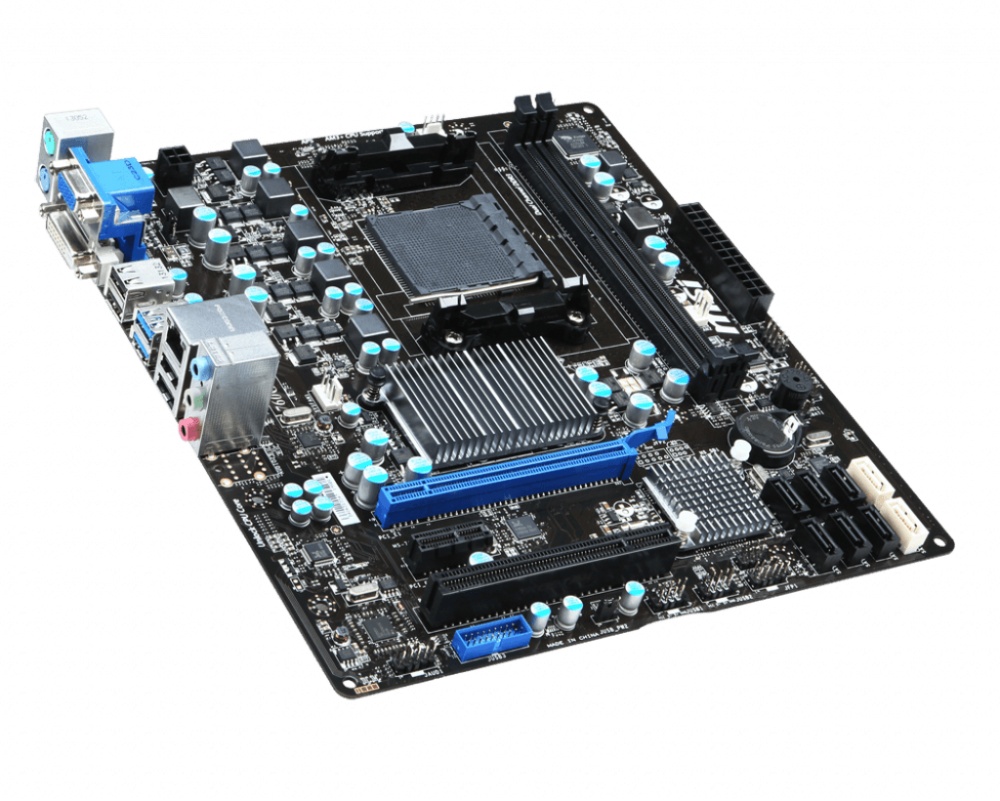

64bit AMD® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU. Please refer to CPU Support for compatible CPU; the above description is for reference only. Hyper Transport Bus • HyperTransport 3 supporting speed up to 5200MT/s Chipset • North Bridge: AMD® 760G and • South Bridge: AMD® SB710 Chipset Main Memory • Supports two unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1866(OC) SDRAM, 16GB Max • Support Dual-Channel mode Slots • 1 PCI Express 2 x16 slot • 1 PCI EXpress x1 slot • 1 PCI slot, support 3.3V/ 5V PCI bus Interface. On-Board SATA • 2 SATA 6Gb/s (7~8) ports by ASMEDIA 1061 - Supports storage and data transfers at up to 6Gb/s • 6 SATA 3Gb/s (1~6) ports by AMD® SB710 - Supports storage and data transfers at up to 3Gb/s RAID Function - SATA 1~6 support RAID 0, 1, 10 or JBOD mode MSI Reminds You... • The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk. Audio • Chipset integrated by Realtek® ALC887 - Flexible 7.1-channel audio with jack sensing - Compliant with Azalia 1 Spec LAN • Realtek PCI-E GbLAN controller RTL8111E - Supports 10Mb/s, 100Mb/s, 1000Mb/s - Compliance with PCI-Express Bus specification v1a Internal I/O Connectors - 1 x ATX 24-pin power connector - 1 x ATX 4-pin 12V CPU power connector - CPU x 1 / System x 2 FAN connectors - 1 x Front panel audio connector - 1 x Front panel connector - 1 x Chassis intrusion switch connector - 2 x USB 2 connectors - 1 x USB 3 connectors - 6 x Serial ATA II connectors - 2 x Serial ATA III connectors - 1 x Serial port connector - 1 x Clear CMOS jumper - 1 x TPM module connector Back Panel I/O Ports - 1 x PS/2 mouse port - 1 x PS/2 keyboard port - 4 x USB 2 ports - 2 x USB 3 ports - 1 x D-sub port - 1 x DVI-D port - 1 x RJ45 LAN jack - 1 x 3 in 1 audio jack Dimension • 243.8cm(L) x 22.8cm(W) Micro-ATX Form Factor
