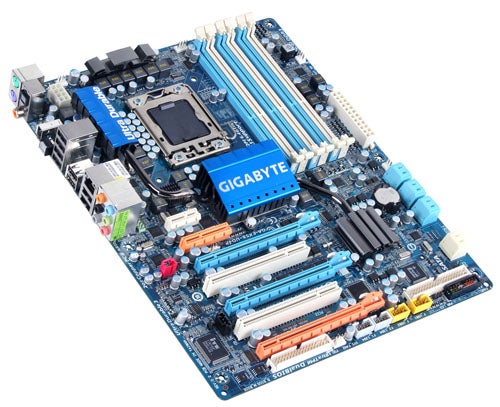

REFURBISHED GA-EX58-UD4P (rev. 1) CPU Support for an Intel® Core™ i7 series processor in the LGA 1366 package (Go to CPU Support List for the latest CPU support ) L3 cache varies with CPU QPI 4.8GT/s / 6.4GT/s Chipset North Bridge: Intel® X58 Express Chipset South Bridge: Intel® ICH10R Memory 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory (Note 1) Dual/3 channel memory architecture Support for DDR3 2100+/1333/1066/800 MHz memory modules (Go to Memory Support List for the latest memory support list.) Audio Realtek ALC889A codec High Definition Audio 2/4/5.1/7.1-channel Support for Dolby® Home Theater Support for S/PDIF In/Out Support for CD In LAN 1 x Realtek 8111D chips (10/100/1000 Mbit) Expansion Slots 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 2) 1 x PCI Express x8 slot, running at x8 (PCIEX8_1) (Note 3) (The PCIEX16_1, PCIE16_2 and PCIEX8_1 slots support 2-Way/3-Way NVIDIA SLI/ATI CrossFireX technology and conform to PCI Express 2 standard.) 1 x PCI Express x4 slot 1 x PCI Express x1 slot 2 x PCI slots Storage Interface South Bridge: 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 GIGABYTE SATA2 chip: 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices 2x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1 and JBOD iTE IT8720 chip: 1 x floppy disk drive connector supporting up to 1 floppy disk drive USB Integrated in the South Bridge Up to 12 USB 2/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers) IEEE 1394 T.I. TSB43AB23 chip Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a brackets connected to the internal IEEE 1394a headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x floppy disk drive connector 1 x IDE connector 8 x SATA 3Gb/s connectors 1 x CPU fan header 3 x system fan headers 1 x power fan header 1 x North Bridge fan header 1 x front panel header 1 x front panel audio header 1 x CD In connector 1 x S/PDIF In header 1 x S/PDIF Out header 2 x USB 2/1.1 headers 2 x IEEE 1394a headers 1 x power LED header 1 x chassis intrusion header 1 x power switch 1 x reset switch Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x coaxial S/PDIF Out connector 1 x optical S/PDIF Out connector 1 x IEEE 1394a port 1 x clearing CMOS switch 8 x USB 2/1.1 ports 1 x RJ-45 ports 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone) I/O Controller iTE IT8720 chip H/W Monitoring System voltage detection CPU/System/North Bridge temperature detection CPU/System/Power fan speed detection CPU overheating warning CPU/System/Power fan fail warning CPU/System fan speed control (Note 4) BIOS 2 x 8 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS™ PnP 1a, DMI 2, SM BIOS 2.4, ACPI 1b Unique Features Support for @BIOS Support for Q-Flash Support for Virtual Dual BIOS Support for Download Center Support for Xpress Install Support for Xpress Recovery2 Support for EasyTune (Note 5) Support for Dynamic Energy Saver Advanced Support for Ultra TPM Support for Time Repair Support for Q-Share Bundled Software Norton Internet Security (OEM version) Operating System Support for Microsoft® Windows Vista/XP Form Factor ATX Form Factor; 30.5cm x 24.4cm
