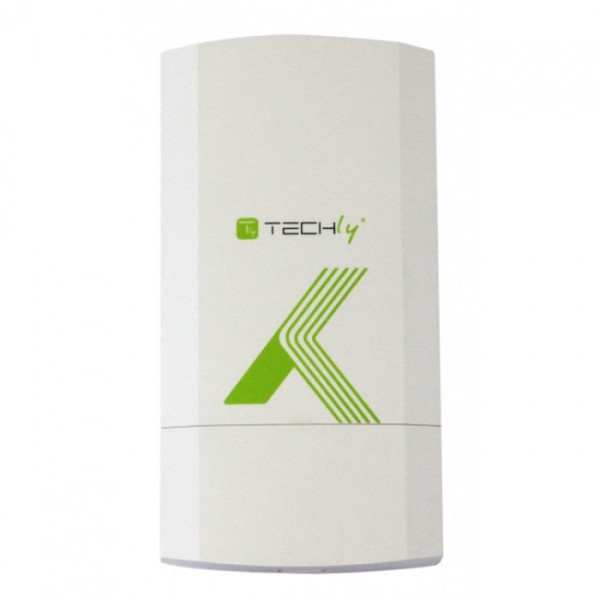

Techly I-WL-CPE120
Wireless Transmission CPE 300Mbps/2.4GHz/8dBi
The Techly I-WL-CPE120 is a CPE device, with a dual polarized MIMO antenna with a high gain of 8dBi, supporting point-to-point and point-to-multipoint applications for wireless data transmission from a distance. CPE
Features

2.4GHz and 300 Mbps CPE designed for monitoring and data transmission for long-distance wireless networks
With dual polarized MIMO antenna with 8dBi high gain
Supports point-to-point and point-to-multipoint applications for wireless data transmission from a distance
Operating Modes: AP and Repeater
Supports passive 24V PoE, easy to install even without a nearby power supply

How does it work?


Features

Frequency: 2.4GHz
Wireless connection frequency: 300Mbps
Antenna: 8dbi, horizontal beam width: 60° +/- 5° - vertical 33° +/- 5°
Button: Reset
LED: PWR (power), WAN, LAN, WiFi
Power mode: DC or Passive PoE Passive PoE
power supply: 24V/0.5A
Input voltage: 12V DC 0.5A
Receive sensitivity: MCS7: -68dbm/MCS0: -86dbm
Operation mode: AP/Repeater
Standards and protocols: IEEE 802.11b/g/n
Support for: Remote access and management from cloud server, reboot, firmware update from cloud server, monitoring technology, automatic reboot and recovery of the device in case of network attack, Wi-Fi channel analysis tool
System settings: Web-based configuration (HTTP / Telnet)
Firmware update: via web browser or TFTP
Admin password: configurable
Logs: supports local logs, log hosts, log export Factory
reset
Backup: Restore device settings and configuration to a local file
4KV lightning protection


Environmental information

Operating temperature: -30℃~55℃
Storage temperature: -40ºC~70ºC
Operating humidity: 5%~95% RH non-condensing


Dimensions
Width: 88 mm
Height: 168 mm
Depth: 57.6 mm


Certifications

CE
WEEE

Package Contents
1 X Techly I-WL-CPE120 Unit
1 X 24V POE Adapter
1 X 1m LAN Cable
1 X User Manual
