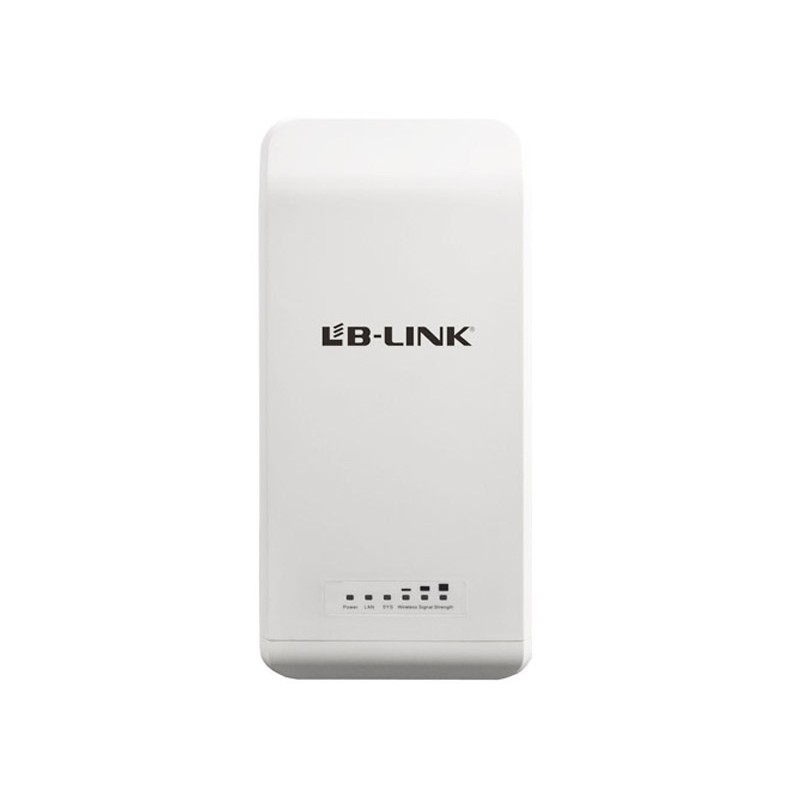

The BL-DA01 150M outdoor wireless access point complies with the IEEE 802.11b/g/n data link protocols. It is applied with the latest chip and the built-in 12dBi high gain antenna. Thus its transmission distance up to 2km. Its casing is specially designed, and can be dust, moist, water and ultraviolet rays proof. It has multiple operating modes, including wireless routing, AP, AP client, wireless bridge, wireless repeater, etc. No matter what the wireless communication mode is, point-to-point, point-to-multipoint or multipoint-to-multipoint, this product can perform quite well. Technical Parameters Data link protocol IEEE 802.11g / IEEE 802.11b / IEEE802.11n / IEEE 802.3 / IEEE 802.3U; Wireless transfer rate 150Mbps Antenna 12dBI directional high gain antenna Radiation width 60°(level angle)/30°(vertical angle) Port 10/100M LAN port(Self-adaptation/auto MDIMDIX)*1, Passive PoE*1 RP-SMA external antenna port*1/ grounding hole*1 Button Reset/ AP/Router LED indicator PWR/SYS/LAN/ Signal strength Channels 14 (Multinational channel support) Basic function SSID broadcast Wireless security MAC address filtering/ WPS 64/128/152 bit WEP/ WPA-PSK/WPA2-PSK/ WPA/WPA2 encryption Operating mode AP mode AP routing AP client mode AP client routing model Bridging mode Multi-bridging / Repeating mode Repeating Wireless routing mode Other function Wireless signal seamless switch AP status indicating DHCP setting DHCP server/DHCP client/client list/static IP distribution/MAC address binding Security setting MAC/IP/Port filtering Content filtering Port forwarding DMZ setting System tools QOS management system security log Web updating AP Configuration file saving and loading Setting WEB updating Environmental parameters Operating temperature: -20℃ ~50℃ Storage temperature: -30℃ ~70℃ Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing Regarding the WLAN security, this outdoor wireless access point could shut the SSID broadcast and filter the MAC address. It supports the 64/128/152 bit WEP, WPAPSK, WPA2-PSK, WPA/WPA2 encryptions. It can ensure the WLAN will not be infiltrated or attacked, and the data will not be stole. This product also has many other functions. It supports the passive PoE LAN cable power supply, so it entirely abandons the trouble of being kept around the fixed socket. This AP also supports the RF power adjusting. Thus the wireless overlay and direction could be handled easily. The LED signal indicator could guide the user to find the optimum installation position. B-LINK is an experienced 150M outdoor wireless access point manufacturer in China. Our company provides a wide range of products, including gigabit Ethernet switch, 10/100Mbps LAN card, 11B/G Wi-Fi module, fax modem, and more.
