Remote control light color, light mode, Speed of light flashing.

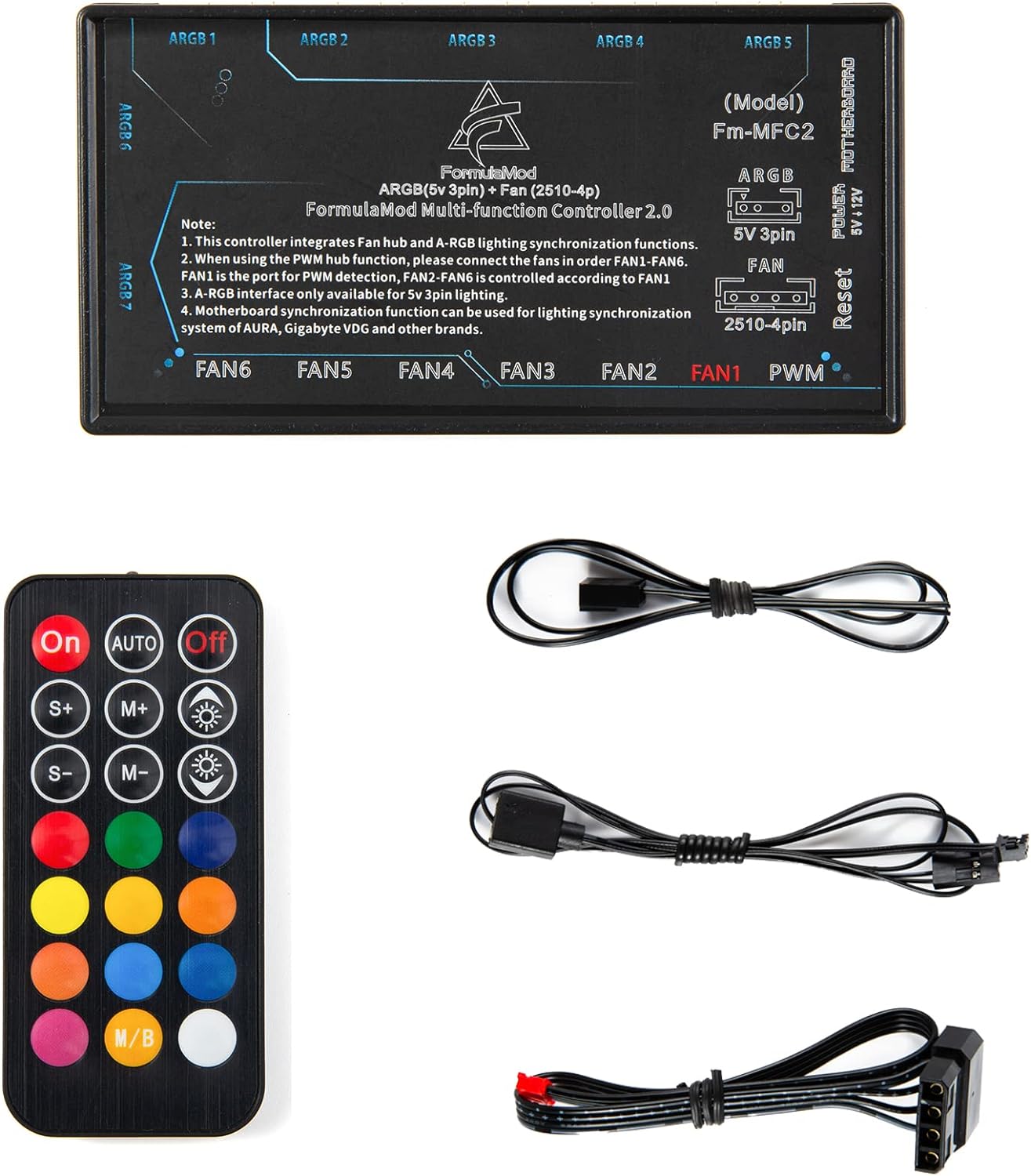

This controller integrates Fan hub and A-RGB lighting synchronization functions.
Control-box function. Double-sided tape for fixing to the case Infrared signal receiver (barrier-free RF433 frequency)

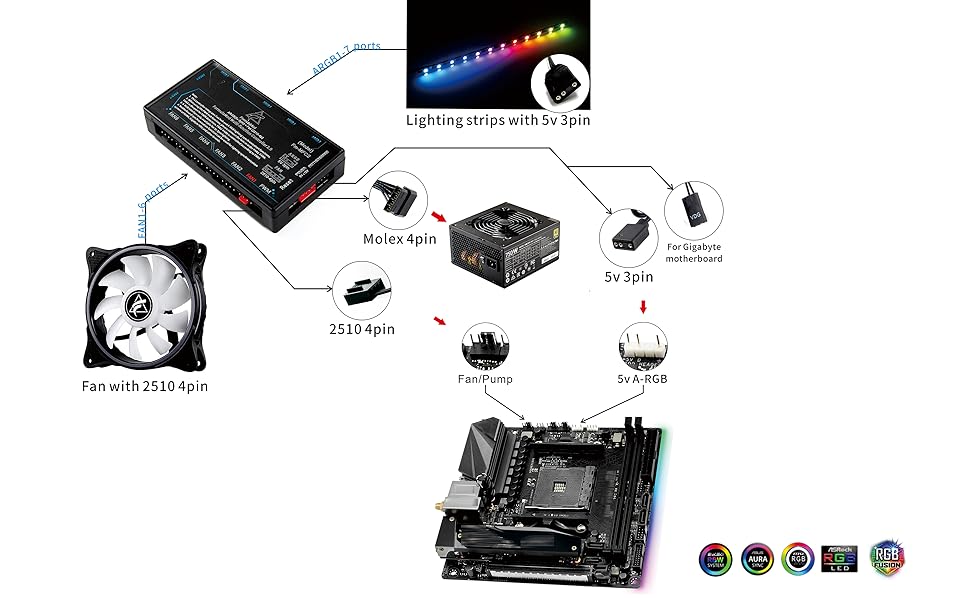

Extra for sync lighting.Compatible with 5v 3pin A-RGB system from major brands And Gigabyte VDG system with small 3pin(2 wires)
You can control up to 6 fans by connecting one of the fan interface, set the fan speed by the motherboard PWM. It adopts direct output from power interface, which is more concise and efficient.
Purchase Notes

1. For the lighting strip, this controller just suitable for for ARGB 5v 3pin

2. Fan 2510-4p interface from hub, Please use the Red interface as the first connection Otherwise it cannot achieve full functionality

Features

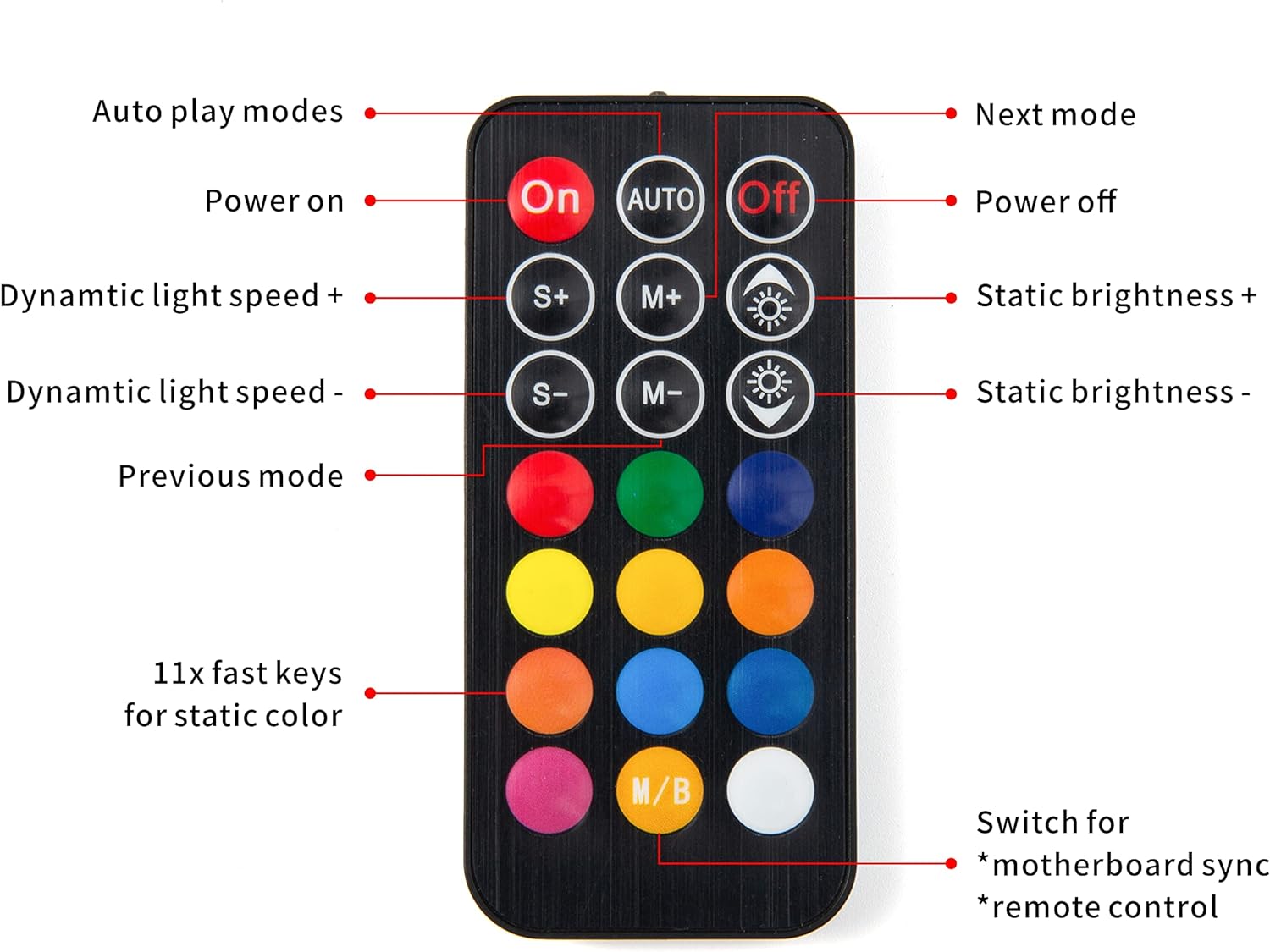

1.Remote control light color, light mode, Speed of light flashing.

2.Interface: Five interfaces for ARGB (5v 3pin) addressable interfaces. Five interfaces for Fan (2510-4p) power and PWM function Two interfaces for 3pin LED lighting strip, 3.The hub has synchronous motherboard RGB function for lighting strips, PWM function & Power for fans

4.Only taking up one RGB header on your motherboard.

5.It adopts direct output from power interface, which is more concise and efficient.

Specification:

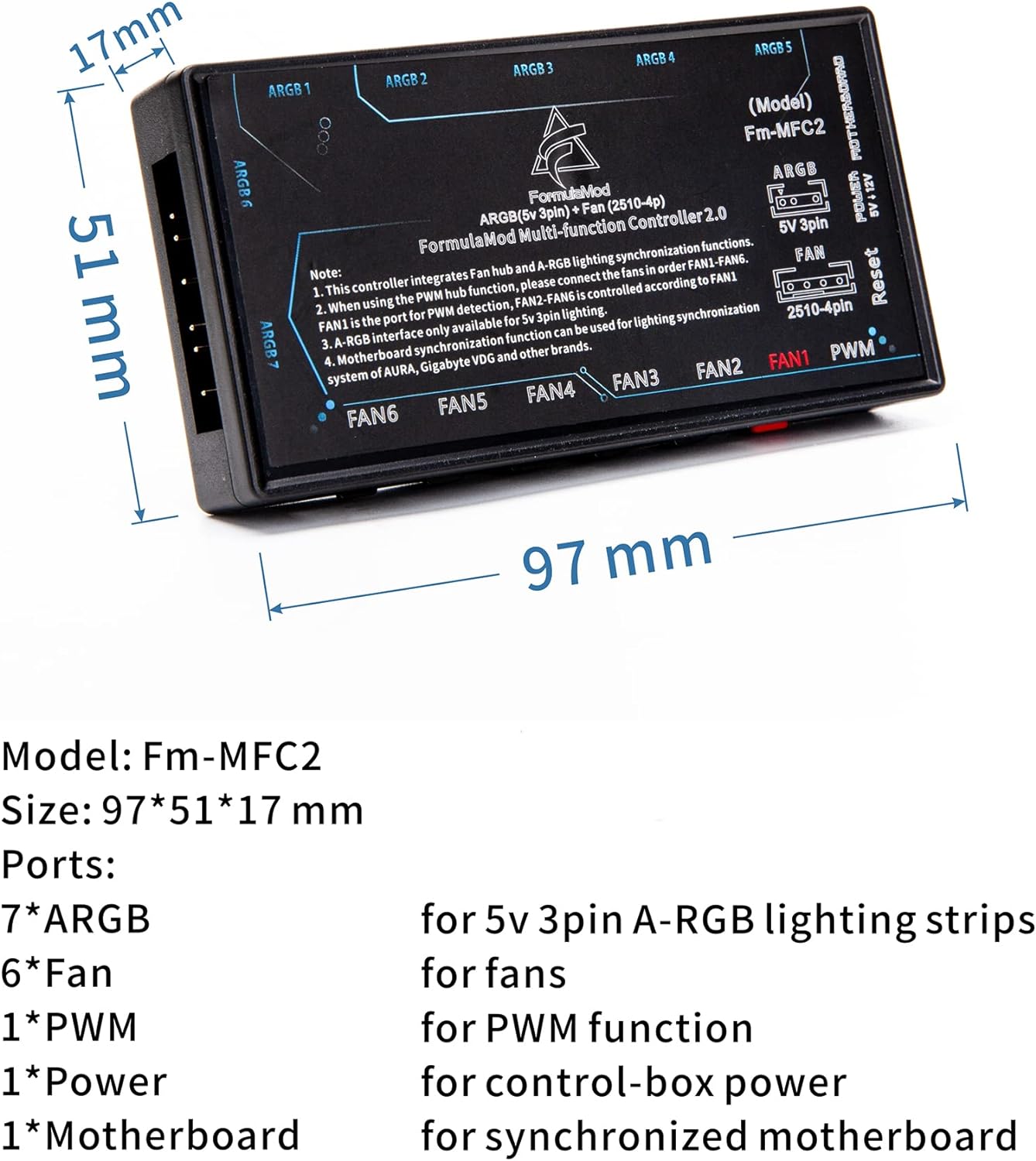

Material: ABS Power connector: Molex D-type 4pin Rated voltage: DC 12V & 5V Size: 97*51*17 mm
