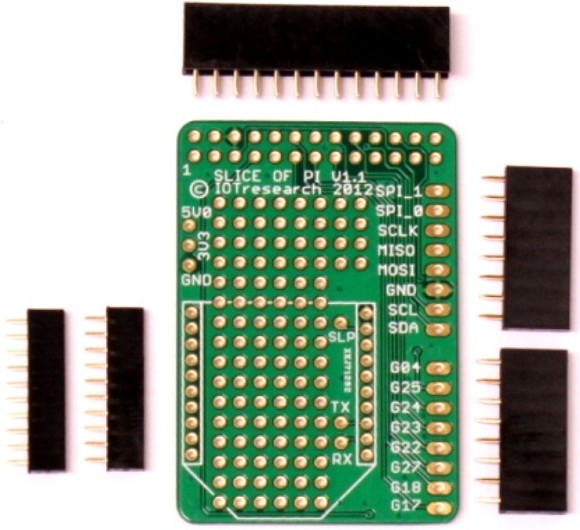

Slice of Pi - Raspberry Pi Addon Prototyping board For everyone who has been waiting for a Raspberry Pi prototyping board, this convenient small breakout board is for you. Useful as a general purpose prototyping board with access to SPI and I2C pins, GP0 through GP7, TX, RX and power. It also includes an XBee style connector for XRF / XBee / RN-XV Radio modules. Comes supplied as a kit of parts that need to be soldered. Construction is very easy and suitable for everyone with basic soldering skills. Header 1 (I2C and SPI) 8 way 0.1 pin male Header 2 (GPIO) 8 way 0.1 pin male Header 3 (XBee) 20 way 2mm pin female connects to PI pin connects to PI pin connects to PI pin SPI_1 SPI_0 SCLK MISO MOSI GND SCL SDA GP7 GP6 GP5 GP4 GP3 GP2 GP1 GP0 3V3 RX TX SLEEP GND Board Size: 5cm x 3.5cm
