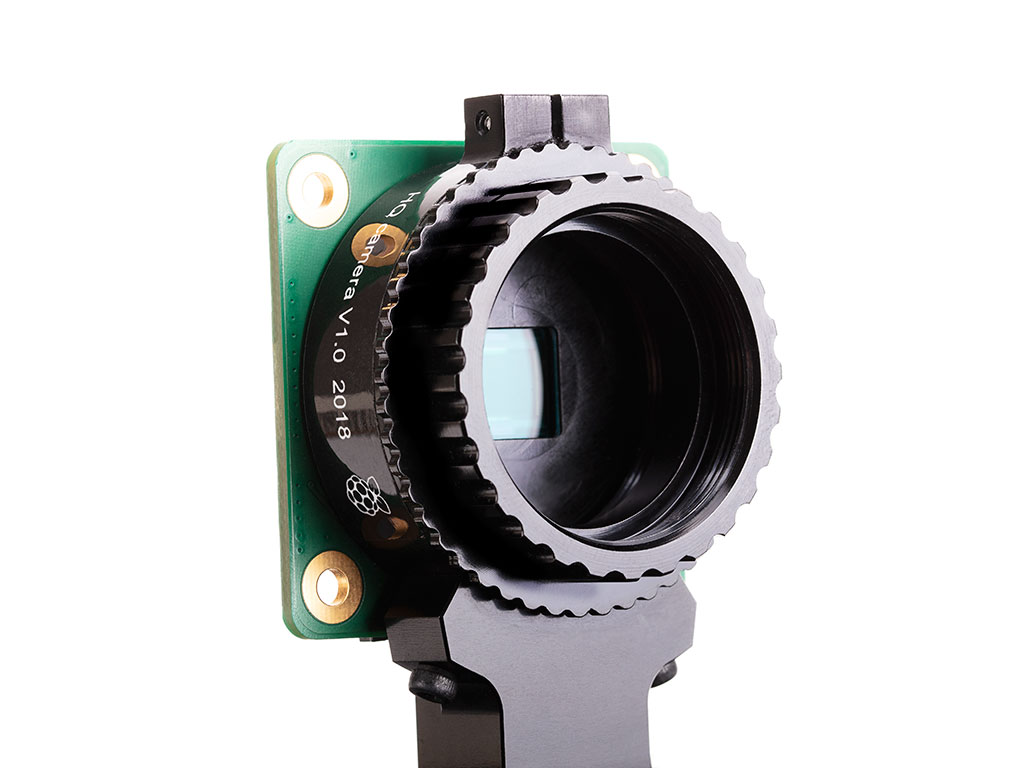

The new camera for Raspberry Pi has arrived and is available from nettop.gr Raspberry Pi High Quality Camera is the latest camera from Raspberry Pi. It offers higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% more area per pixel for improved low-light performance) than the existing Module v2 camera, and is designed to work with interchangeable lenses in both C- and CS-mounts. You can use various third party lenses or just get the recommended ones. It is compatible with all older Raspberry Pi models, from Raspberry Pi 1 Model b onwards, using the latest software from Raspberrypi.org/ Note it cannot be used directly with Raspberry Pi Zero, you need an FPC adapter. The package includes a circuit board carrying a Sony IMX477 sensor, an FPC cable to connect to the Raspberry Pi, an aluminum lens mount with a built-in tripod mount and a focus ring, and a C-to CS adapter. The HQ Camera is designed to accept CS mount lenses and with the supplied adapter, C-mount lenses. The CGL 6mm CS-mount and 16mm C-mount lenses are examples of third-party products compatible with HQ Camera. See detailed instructions for mounting these CS-mount and C-mount lenses . Characteristics Sensor: Sony IMX477R stacked, back-illuminated sensor 12.3 megapixels 7.9 mm sensor diagonal 1.55 μm × 1.55 μm pixel size Output: RAW12/10/8, COMP8 Back focus: Adjustable (12.5 mm–22.4 mm) Lens standards: C-mount CS-mount (C-CS adapter included) IR cut filter: Integrated2 Ribbon cable length: 200 mm Tripod mount: 1/4”-20 Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU Production lifetime: The Raspberry Pi High Quality Camera will remain in production until at least January 2026 The package does not include a lens, you should purchase it separately. Documents Getting started guide Raspberry Pi High Quality Camera - product brief Raspberry Pi High Quality Camera mechanical drawing Example fitting instructions for a typical C-mount lens Example fitting instructions for a typical CS-mount lens Expected delivery Monday 04/05
