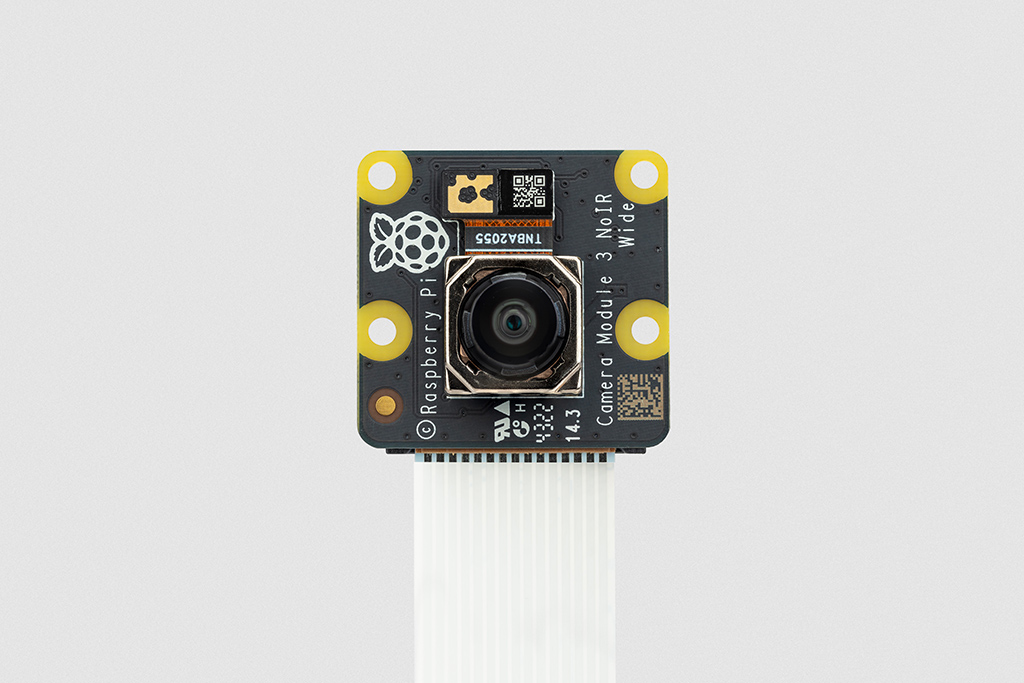

Raspberry Pi Camera Module V3 Wide NoIR The new version of the Official Camera for the Raspberry Pi Camera Module 3 features the 12 megapixel IMX708 sensor with HDR and also features phase detection autofocus. Camera Module 3 is available in standard and wide versions, both available with or IR filter. The Camera Module V3 can be used to capture Full HD video as well as photos, and has an HDR function up to 3 megapixels. Its functionality is fully supported by the libcamera library, including the fast autofocus feature of Camera Module 3: this makes it easy to use for beginners, while offering plenty for advanced users. Camera Module 3 is compatible with all Raspberry Pi computers (except Zero which needs an adapter to use it). The PCB size and mounting holes remain the same as the previous version of Camera V2. The Z dimension is different: due to the improved optics, Camera Module 3 is several millimeters taller than Camera Module 2. There are 4 different models of this camera Specification Back-illuminated, stacked CMOS 12-megapixel Sony IMX708 image sensor High signal-to-noise ratio (SNR) Built-in 2D Dynamic Defect Pixel Correction (DPC) Phase Detection Autofocus (PDAF) for rapid autofocus QBC Re-mosaic function HDR mode (up to 3 megapixel output) CSI-2 serial data output 2-wire serial communication (supports I2C fast mode and fast mode plus) 2-wire serial control of focus mechanism Resolution: 11.9 megapixels Sensor size: 7.4mm sensor diagonal Pixel size: 1.4μm × 1.4μm Horizontal/vertical: 4608 × 2592 pixels Diagonal field of view: 75 degrees (Camera Module 3, Camera Module 3 NoIR), 120 degrees (Camera Module 3 Wide, Camera Module 3 NoIR Wide) Common video modes: 1080p50, 720p100, 480p120 Output: RAW10 IR cut filter: Integrated in standard variants; not present in NoIR variants Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants) Ribbon cable length: 200mm Cable connector: 15 × 1mm FPC Raspberry Pi Camera Module 3 product brief Raspberry Pi Camera Module 3 Standard mechanical drawing Raspberry Pi Camera Module 3 Wide mechanical drawing
