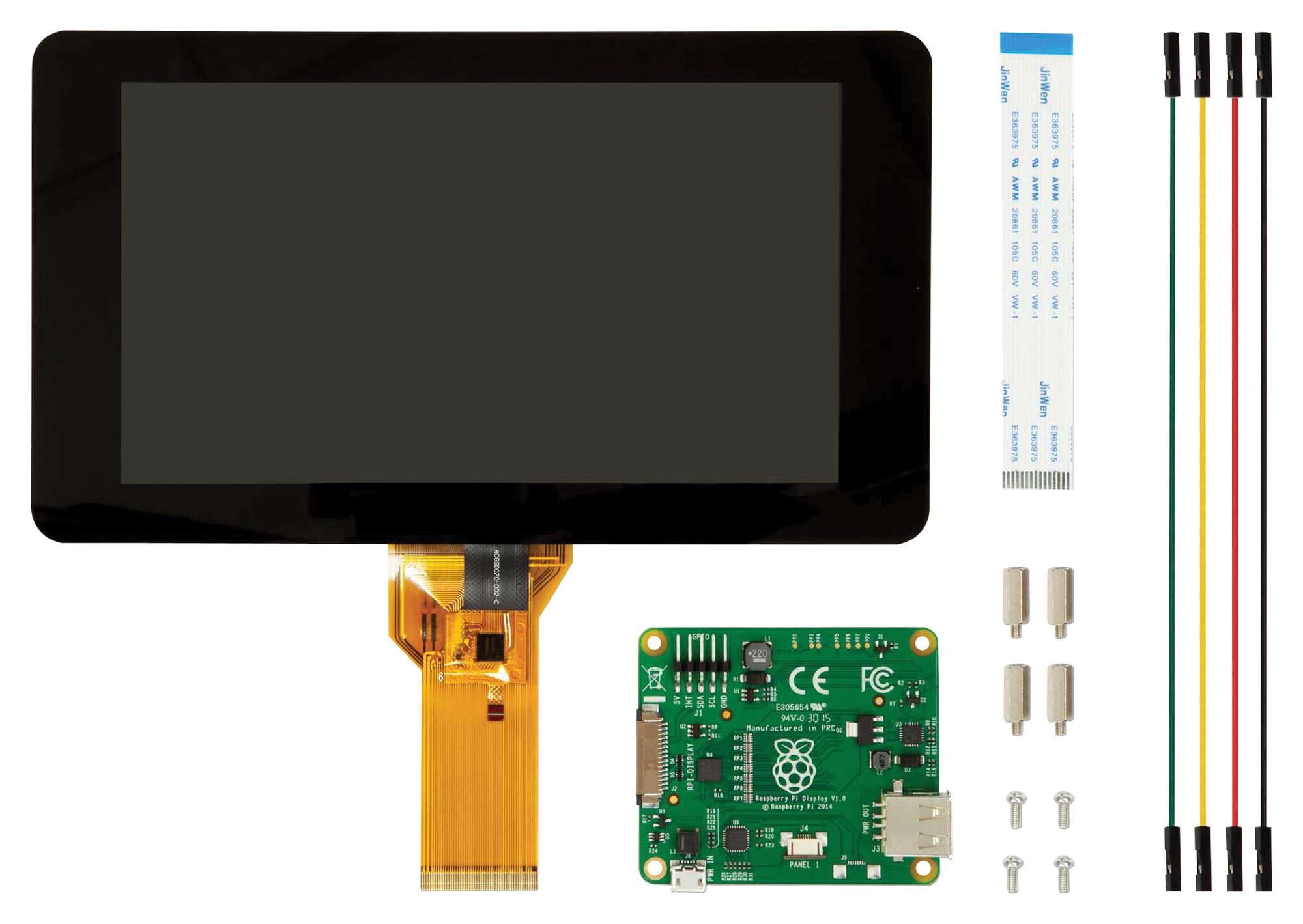

Raspberry Pi 7" Touch Screen Display with 10 Finger Capacitive Touch The 7 "touchscreen for Raspberry Pi enables users to create integrated projects such as tablets, information and entertainment systems, and built -in programs with presentation. The 800 x 480 display is connected via a built -in board that handles the power and the conversion signal. It is a ten -point touch and in the next version of the Raspbian will incorporate a display keyboard so that no natural keyboard or mouse will need. Specifications : 7” Touch Screen Display Screen Dimensions: 194mm x 110mm x 20mm (including standoffs) Viewable screen size: 155mm x 86mm • Screen Resolution 800 x 480 pixels 10 finger capacitive touch. Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port. Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi. Will require the latest version of Raspbian OS to operate correctly Kit Contents: 7” Touch Screen Display Adapter Board DSI Ribbon cable 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units)
