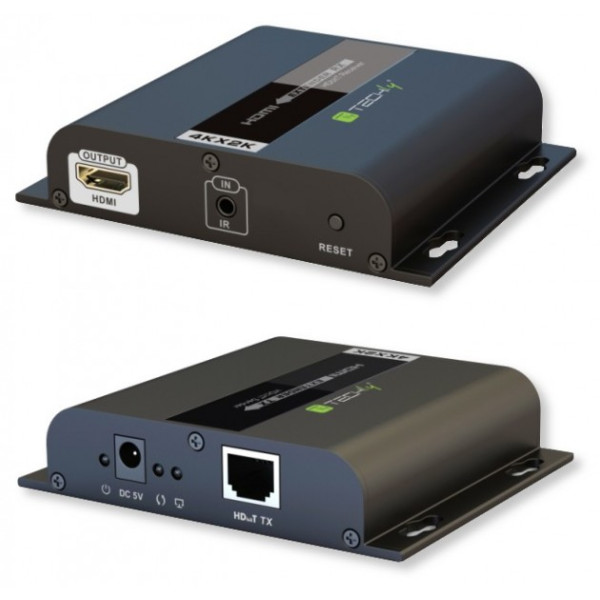

HDMI extender that implements HDbitT technology to transmit the HDMI signal through a

CAT5/5e/6 cable to achieve transmission distance up to 120 meters. The maximum resolution

supported is 4Kx2K (3840x2160 @ 30Hz) and extends the HDMI signal without limitations

with cascade connection. Due to the high bandwidth, consumption must use

these devices with an IGMP router or alternatively in dedicated networks or separate VLANs.



SPECIFICATIONS

• Supports resolutions up to 4Kx2K @ 30Hz • Supported resolutions: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60 Hz, 1080i @ 50/60 Hz, 1080p @ 50/60Hz, 4Kx2K @ 24/25/30 Hz

• Sends HDMI signal over a CAT5/5e/6 • Extends signal up to 120 meters at 4Kx2K @ 30Hz

• Connects to routers to split and extend indefinitely

• Compatible with existing network, does not affect the Internet • Supports IR signals 20kHz-60kHz • Compatible with HDMI 1.4 and HDCP V1.4


Installation requirements

• HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment, etc.)

• HDMI displays as SDTV, projector with HDMI port • Network cables: UTP/STP Cat5e/6 network cables, meeting EIA568B standards

• Transmission distance: 80m CAT5 / CAT5E100m / CAT6 120m Connection • Point-to-point connection: up to 120 meters transmission distance via a CAT6 cable

• Router connection: using a router/repeater, you can reach unlimited extensions

• Point-to-multipoint connection: using a router/switch, one transmitter to multiple receivers, you can complete the function of extension and splitter Note: We recommend using a gigabit switch (1000Mbps) for LAN transmission

Size

• Width: 96.8 mm

• Depth: 94 mm

Height: 23.7mm


in the box
• 1x HDMI EXTENDER TX transmitter
• 1x HDMI EXTENDER RX receiver
• 2x DC5V/2A power adapter
• 1x IR Blaster extension cable
• 1x IR receiver extension cable
• 1x instruction manual
