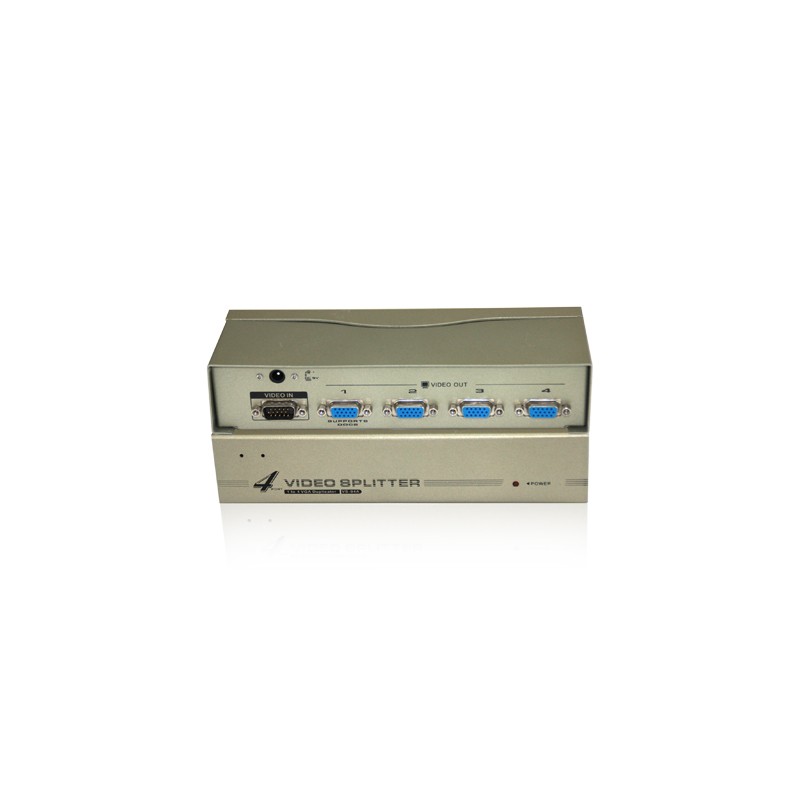

This 4-Port VGA Video Splitter offers outstanding quality and distance, allowing you to deliver high resolution VGA video from a single video source to up to four monitors simultaneously. It is very simple to install, allowing you to locate screens up to 65m away from the VGA video source. Typical applications include digital signage, retail and trade show environments, educational and government facilities, or corporate displays where high quality, multi-monitor VGA video is required. Deliver high resolution VGA video from 1 PC to 4 VGA monitors simultaneously Ultra high 250MHz video bandwidth (-3dB) Support high resolution 1920x1440 Built-in video signal enhancement, enhances video signals for distance up to 65m (213ft) Support DDC, DDC2, DDC2B at Port 1 All metal casing, good anti interference performance With packing box Specification: Model: ES-2504 Input Connectors HDB-15 Female: 1 Output Connectors HDB-15 Female: 4 Output Impedance/Level: RGB: 75Ω, 0.7 Vp-p; HV SYNC: TTL Level Bandwidth (-3dB): 250MHz Resolution: 1920x1440, support DDC, DDC2, DDC2B (at PNP port) Horizontal: 30-100KHz Vertical: 43-120Hz Transfer Distance: 40-50 meters, up to 65m with high quality VGA cable Power Consumption: 5W Dimension: 110mm x 56mm x 25mm Housing Material: Metal Operating Temperature: 0°C - 90°C Humidity: 0 - 95%
